View full reportTechnical parameters
Key specs
Positions15
Rows2
GenderMale
Current rating5 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 5A |
| Voltage Rating | 300V |
| Environment and package | |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -55°C ~ 125°C |
| Shell Size, Connector Layout | 2 (DA, A) |
| Other | |

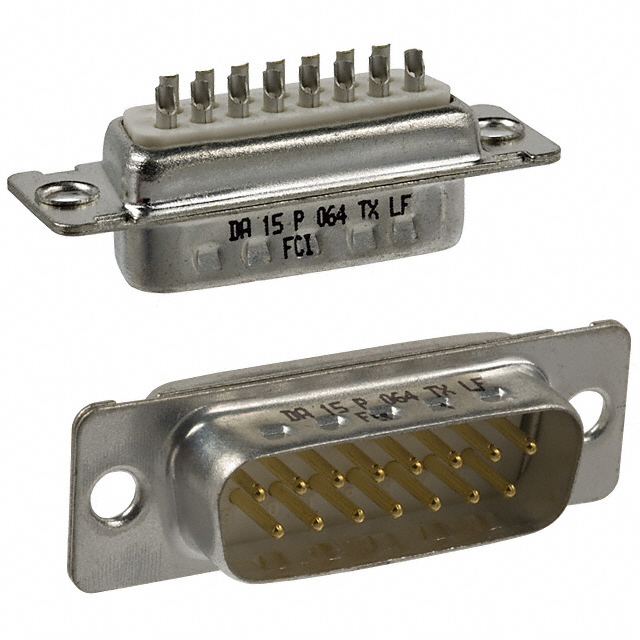

| Base Product Number | DA15P064 |
| Color | Natural |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Type | Signal |
| Dielectric Material | Thermoplastic |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Ingress Protection | - |
| Mfr | Amphenol ICC (FCI) |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Packaging | - |
| Part Status | Active |
| Series | D |
| Shell Material, Finish | Steel, Tin Plated |
| Termination | Solder Cup |
Documents
No documents are linked to this part yet.
