Dialog Semiconductor GmbHGermany

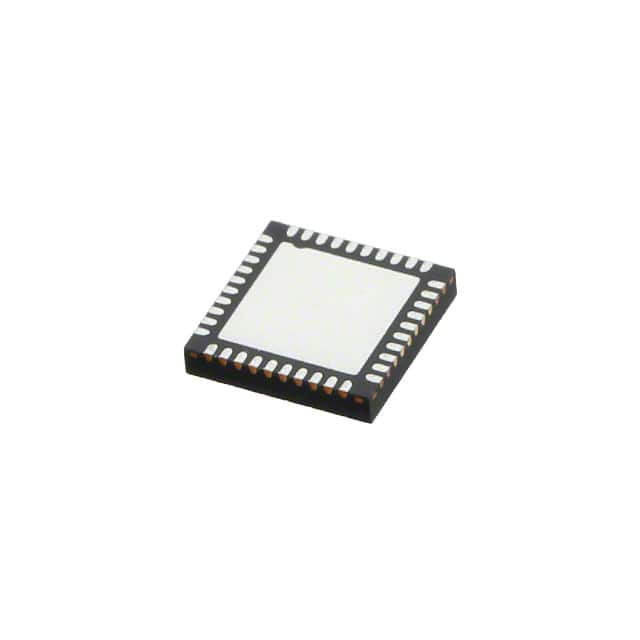

IC RF TXRX+MCU BLUETOOTH 40VFQFN
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Receiving | 3.7mA |
| Current - Transmitting | 3.4mA |
| Power - Output | -1dBm |
| Voltage - Supply | 2.35V ~ 3.3V |
| AC and DC characteristics | |
| Frequency | 2.4GHz |
| Environment and package | |
| Memory Size | 32kB OTP, 84kB ROM, 50kB SRAM |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-QFN (5x5) |
| Other | |
| Base Product Number | DA14581 |
| Data Rate (Max) | - |
| GPIO | 24 |
| Mfr | Dialog Semiconductor GmbH |
| Modulation | - |
| Product Status | Not For New Designs |
| Protocol | Bluetooth v4.1 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -93dBm |
| Serial Interfaces | I²C, SPI, UART |
| Series | - |
| Type | TxRx + MCU |
