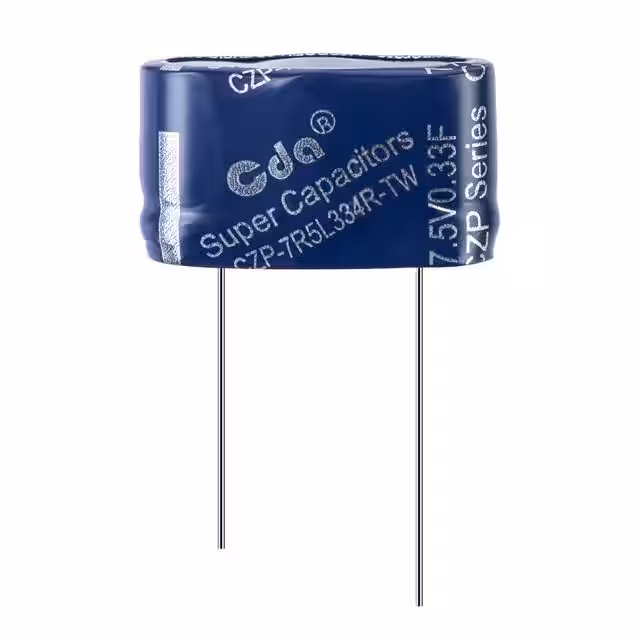

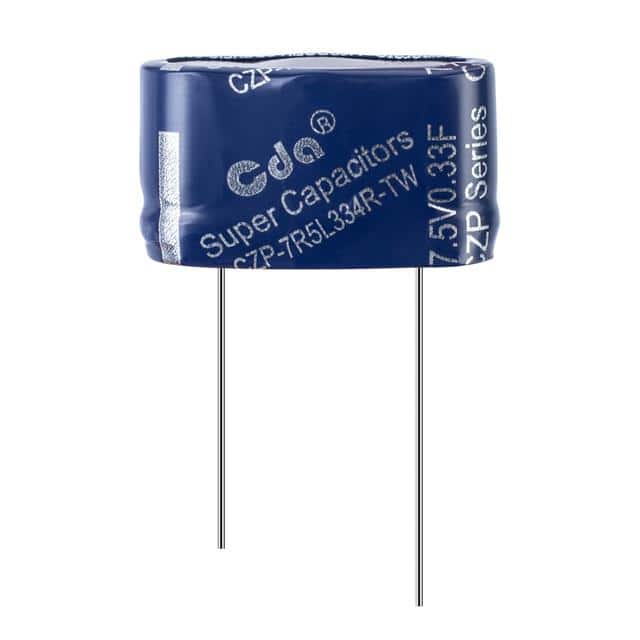

7.5V 0.33F 24*8*14 EDLC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Rated | 7.5 V |
| Environment and package | |
| Height - Seated (Max) | 0.610" (15.50mm) |
| Lifetime @ Temp. | - |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~65°C |
| Package | Box |
| Package / Case | Radial, Can |
| Size / Dimension | 0.945" L x 0.315" W (24.00mm x 8.00mm) |
| Other | |
| Capacitance | 330 mF |
| ESR (Equivalent Series Resistance) | 500mOhm @ 1kHz |
| Lead Spacing | 0.531" (13.50mm) |
| Mfr | Zhi Feng Wei Technology |
| Product Status | Active |
| Series | CZP |
| Termination | PC Pins |
| Tolerance | - |
Documents
No documents are linked to this part yet.
