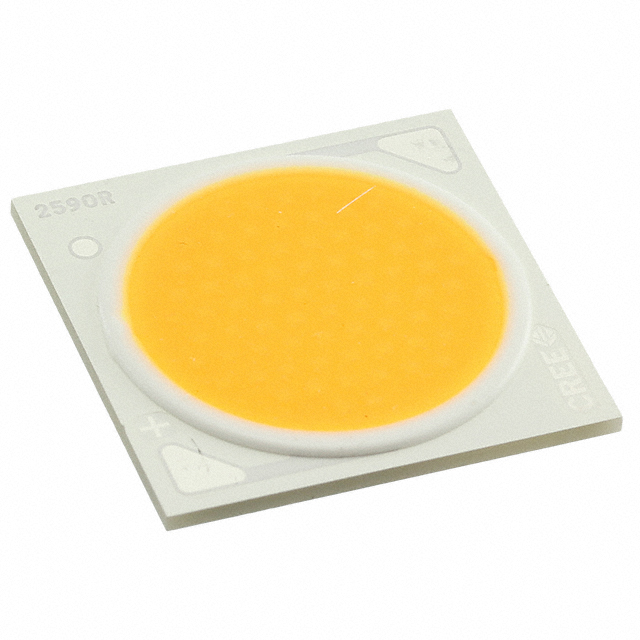

CXA2590-0000-000R0YY227H
Cree LEDUnited States

CXA2590-0000-000R0YY227H

LED COBs, Engines, Modules, Strips

LED COB XLAMP WARM WHT SQU 2700K

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current - Max1.8A
Current - Test1.2A
Lumens/Watt @ Current - Test81 lm/W
Voltage - Forward (Vf) (Typ)69V
Environment and package
Height1.55mm
Luminous Flux @ Current/Temperature6670lm (6430lm ~ 6910lm)
Size / Dimension23.85mm L x 23.85mm W
Temperature - Test85°C
Other
Base Product NumberCXA2590
CCT (K)2700K 2-Step MacAdam Ellipse
ColorWhite, Warm
ConfigurationSquare
CRI (Color Rendering Index)93
Features-
Lens TypeFlat
Light Emitting Surface (LES)19.00mm Dia
ManufacturerCree LED
PackagingTray
Part StatusObsolete
SeriesXLamp® CXA2590
TypeChip On Board (COB)
Viewing Angle115°
Wavelength-

Documents

No documents are linked to this part yet.
