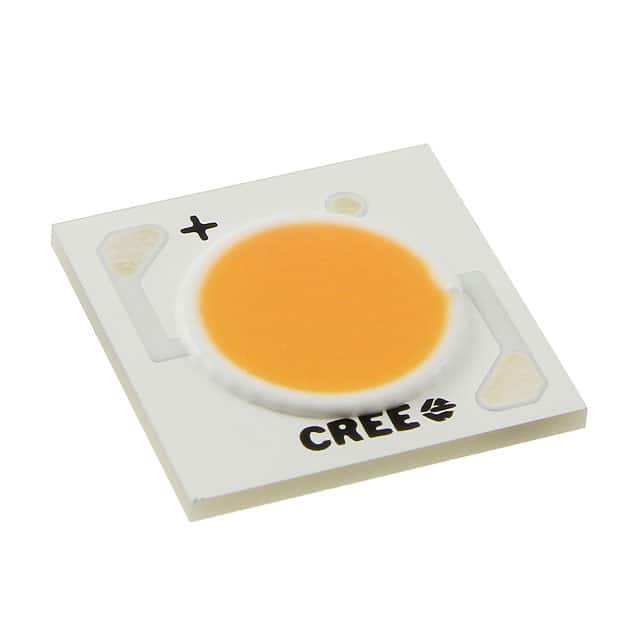

CXA1520-0000-000N0HN240H
CreeLED, Inc.United States

CXA1520-0000-000N0HN240H

ObsoleteLED Lighting - COBs, Engines, Modules, Strips

LED ARRAY XLAMP CXA1520 WHITE

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current - Max900mA
Current - Test500mA
Lumens/Watt @ Current - Test125 lm/W
Voltage - Forward (Vf) (Typ)35V
Environment and package
Height1.70mm
Luminous Flux @ Current/Temperature2180lm(2100lm~2260lm)
PackageTray
Size / Dimension15.85mm L x 15.85mm W
Temperature - Test85°C
Other
Base Product NumberCXA1520
CCT (K)4000K 2-Step MacAdam Ellipse
ColorWhite, Neutral
ConfigurationSquare
CRI (Color Rendering Index)80
Features-
Lens TypeFlat
Light Emitting Surface (LES)8.90mm Dia
MfrCreeLED, Inc.
Product StatusObsolete
SeriesXLamp® CXA1520
TypeChip On Board (COB)
Viewing Angle115°
Wavelength-

Documents

No documents are linked to this part yet.
