Cardinal Components Inc.United States

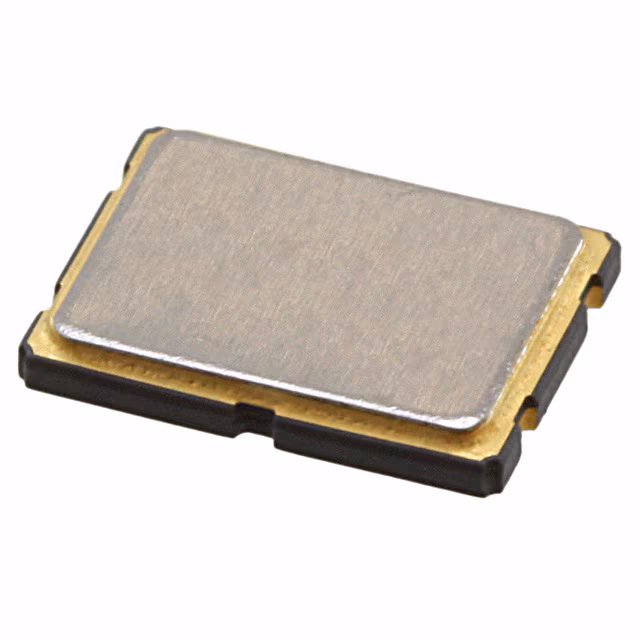

CRYSTAL 24.0000MHZ 18PF SMD
All alternatives
View full reportTechnical parameters
Key specs
Frequency24 MHz
Frequency tolerance20 ppm
Load capacitance18 pF
ESR40 ΩMax
| AC and DC characteristics | |
|---|---|
| Frequency | 24 MHz |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±20ppm |
| Environment and package | |
| Height - Seated (Max) | 0.051" (1.30mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -20°C~70°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.283" L x 0.205" W (7.20mm x 5.20mm) |
| Other | |
| ESR (Equivalent Series Resistance) | 40 Ohms |
| Load Capacitance | 18pF |
| Mfr | Cardinal Components Inc. |
| Operating Mode | Fundamental |
| Product Status | Active |
| Ratings | - |
| Series | CX5 |
| Type | MHz Crystal |
