Crystek CorporationUnited States

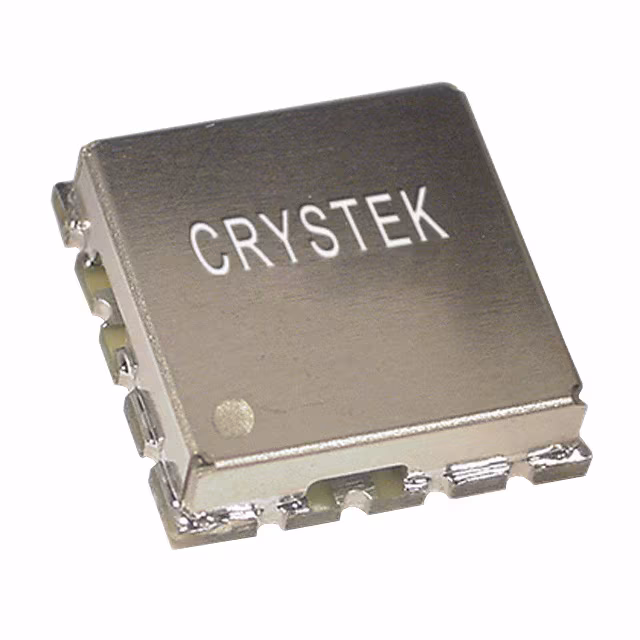

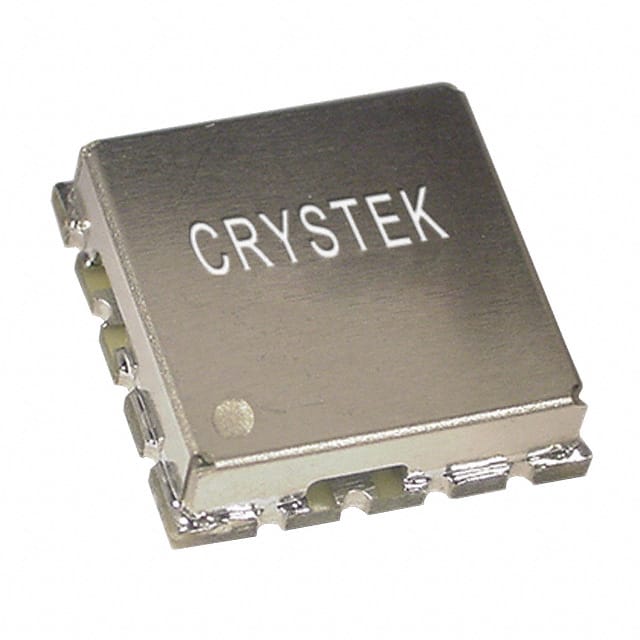

VCO 796MHZ 0.3-4.7V 12.7X12.7MM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power (dBm) | -6.5 ±1 |
| Tuning Voltage (VDC) | 0.3 V ~ 4.7 V |
| Voltage - Supply | 5V |
| AC and DC characteristics | |
| Frequency - Center | 796MHz |
| Frequency Range | 787 ~ 805MHz |
| Phase Noise Typ (dBc/Hz) | -120 |
| Environment and package | |
| Height | 0.220" (5.59mm) |
| Operating Temperature | -30°C~70°C |
| Package | Strip |
| Package / Case | 16-QFN, Variant |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Other | |
| 2nd Harmonic, Typ (dBc) | -15 |
| Icc Max | 35mA |
| Mfr | Crystek Corporation |
| Product Status | Active |
| Pushing (MHz/V) | 0.2 |
| Series | CVCO55 |
