Coto TechnologyUnited States

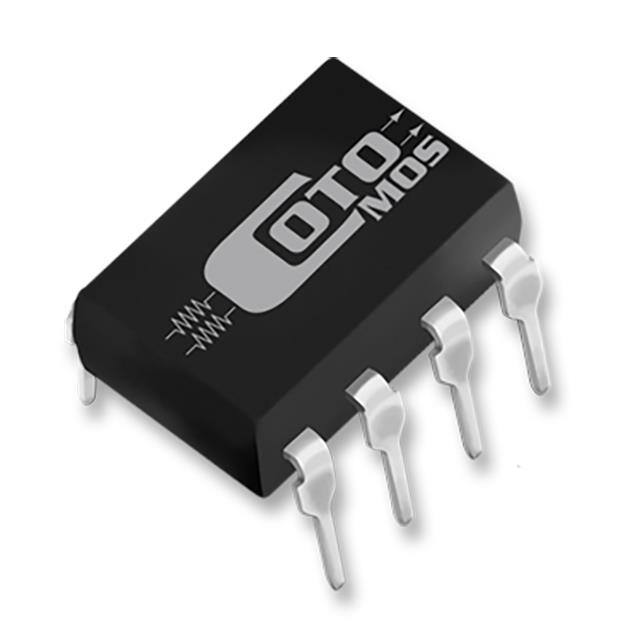

SSR RELAY SPST-NO 120MA 0-350V
All alternatives
View full reportTechnical parameters
Key specs
Input voltage1.2 V
Load voltage0 ~ 350 V
Load current120 mAMax
Output typeAC/DC
CircuitSPST-NO
| Power | |
|---|---|
| Load Current | 120 mA |
| Voltage - Input | 1.2VDC |
| Voltage - Load | 0 V ~ 350 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Package | Tube |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Other | |
| Circuit | SPST-NO (1 Form A) |
| Mfr | Coto Technology |
| On-State Resistance (Max) | 30 Ohms |
| Output Type | AC, DC |
| Product Status | Obsolete |
| Series | COTOMOS™ |
| Termination Style | PC Pin |
Documents
No documents are linked to this part yet.
