Coto TechnologyUnited States

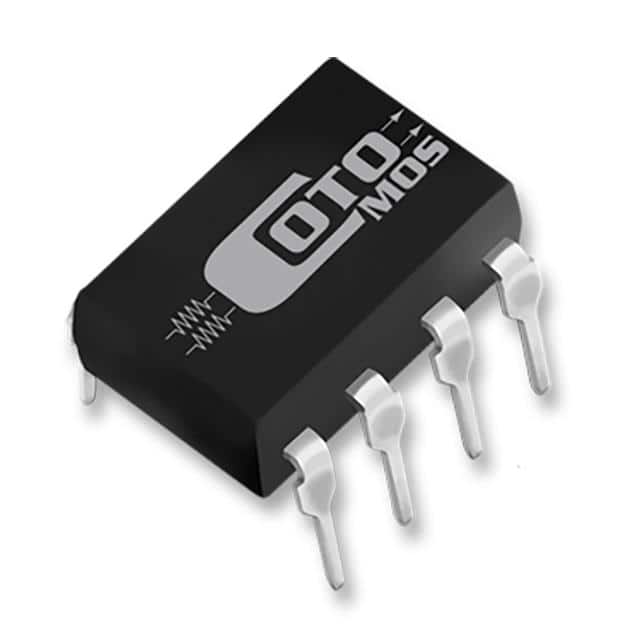

SSR RELAY SPST-NO 80MA 0-80V
All alternatives
View full reportTechnical parameters
Key specs
Input voltage1.37 V
Load voltage0 ~ 80 V
Load current80 mAMax
Output typeAC/DC
CircuitSPST-NO
| Power | |
|---|---|
| Load Current | 80 mA |
| Voltage - Input | 1.37VDC |
| Voltage - Load | 0 V ~ 80 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Package | Tube |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Other | |
| Circuit | SPST-NO (1 Form A) x 2 |
| Mfr | Coto Technology |
| On-State Resistance (Max) | 30 Ohms |
| Output Type | AC, DC |
| Product Status | Obsolete |
| Series | COTOMOS™ |
| Termination Style | PC Pin |
Documents
No documents are linked to this part yet.
