CT25E-16T150-1
Challenge ElectronicsUnited Kingdom

CT25E-16T150-1

ActiveAlarms, Buzzers, and Sirens

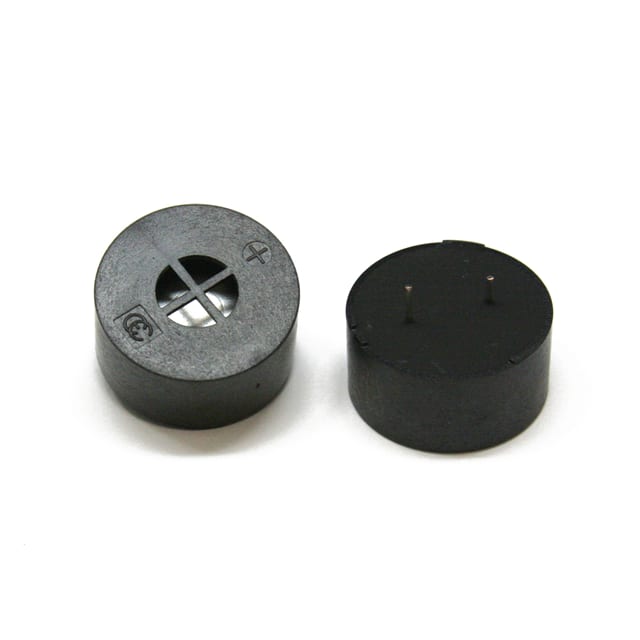

BUZZER MAGNETIC 12V 25MM TH

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current - Supply55mA
Voltage Range8 ~ 16V
Voltage - Rated12 V
AC and DC characteristics
Frequency1.5kHz
Environment and package
Height - Seated (Max)0.500" (12.70mm)
Mounting TypeThrough Hole
Operating Temperature-40°C~85°C
PackageTray
Size / Dimension0.984" Dia (25.00mm)
Other
Approval Agency-
Driver CircuitryTransducer, Externally Driven
Duration-
Ingress Protection-
Input TypeZero-Peak Signal
MfrChallenge Electronics
Operating ModeSingle Tone
Port LocationTop
Product StatusActive
RatingsWashable
Series-
Sound Pressure Level (SPL)104dB @ 12V, 10cm
TechnologyMagnetic
TerminationPC Pins

Documents

No documents are linked to this part yet.
