CT11P-25S410-2
Challenge ElectronicsUnited Kingdom

CT11P-25S410-2

ActiveAlarms, Buzzers, and Sirens

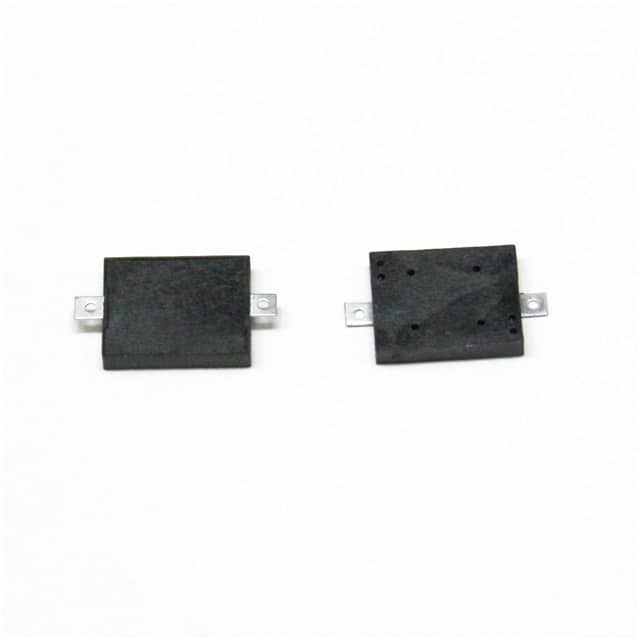

BUZZER PIEZO 5V 11X9MM SMD

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current - Supply3mA
Voltage Range1 ~ 25V
Voltage - Rated5 V
AC and DC characteristics
Frequency4.1kHz
Environment and package
Height - Seated (Max)0.067" (1.70mm)
Mounting TypeSurface Mount
Operating Temperature-30°C~70°C
PackageTape & Reel (TR); Cut Tape (CT); Digi-Reel®
Size / Dimension0.433" L x 0.354" W (11.00mm x 9.00mm)
Other
Approval Agency-
Driver CircuitryTransducer, Externally Driven
Duration-
Ingress Protection-
Input TypePeak-Peak Signal
MfrChallenge Electronics
Operating ModeSingle Tone
Port LocationTop
Product StatusActive
Ratings-
Series-
Sound Pressure Level (SPL)70dB @ 5V, 10cm
TechnologyPiezo
TerminationSolder Pads
