Cardinal Components Inc.United States

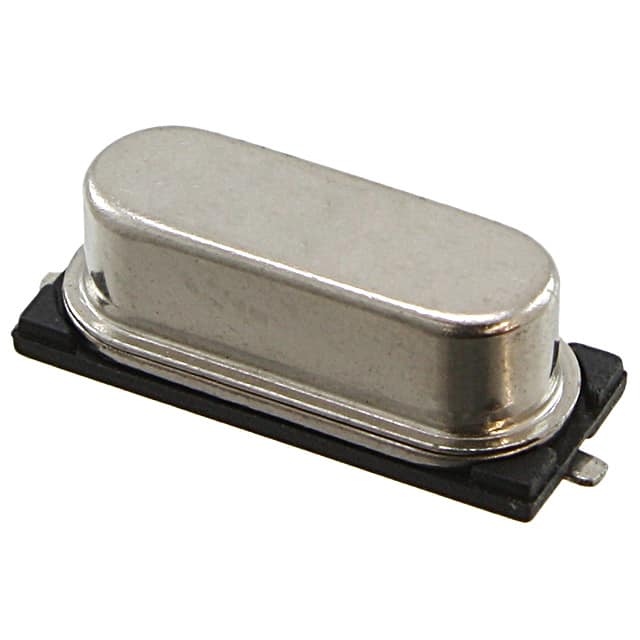

CRYSTAL 24.0000MHZ 18PF SMD
All alternatives
View full reportTechnical parameters
Key specs
Frequency24 MHz
Frequency tolerance25 ppm
Load capacitance18 pF
ESR60 ΩMax
| AC and DC characteristics | |
|---|---|
| Frequency | 24 MHz |
| Frequency Stability | ±10ppm |
| Frequency Tolerance | ±25ppm |
| Environment and package | |
| Height - Seated (Max) | 0.169" (4.30mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | HC-49S |
| Size / Dimension | 0.449" L x 0.185" W (11.40mm x 4.70mm) |
| Other | |
| ESR (Equivalent Series Resistance) | 60 Ohms |
| Load Capacitance | 18pF |
| Mfr | Cardinal Components Inc. |
| Operating Mode | Fundamental |
| Product Status | Obsolete |
| Ratings | - |
| Series | CSM1 |
| Type | MHz Crystal |
