Cirrus Logic Inc.United States
IC PGA/DIFF 2 CIRCUIT 24SSOP
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage4.75 ~ 5.25 V
Gain bandwidth product2 kHzTyp
Input offset voltage5 µVTyp
Quiescent current3.5 mATyp
Channels2
| Power | |
|---|---|
| Current - Input Bias | 500 pA |
| Current - Output / Channel | 25 mA |
| Current - Supply | 3.5mA |
| Voltage - Supply Span (Max) | 5.25 V |
| Voltage - Supply Span (Min) | 4.75 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 2 kHz |
| Slew Rate | - |
| Voltage - Input Offset | 5 µV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package | Tube |

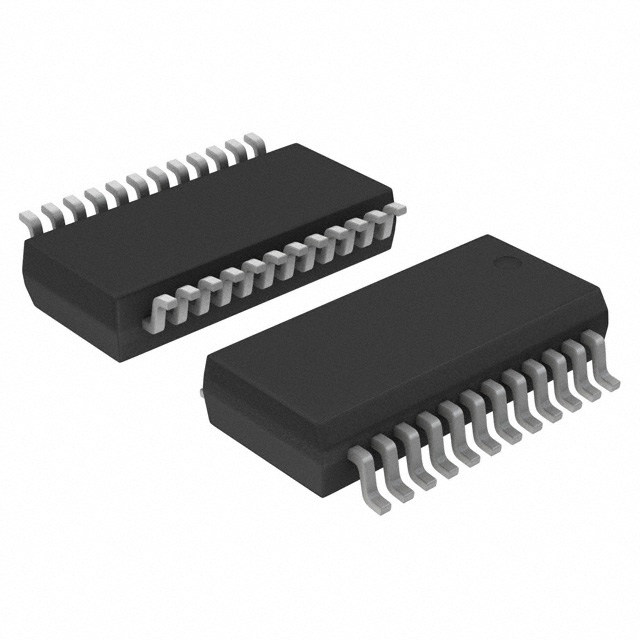

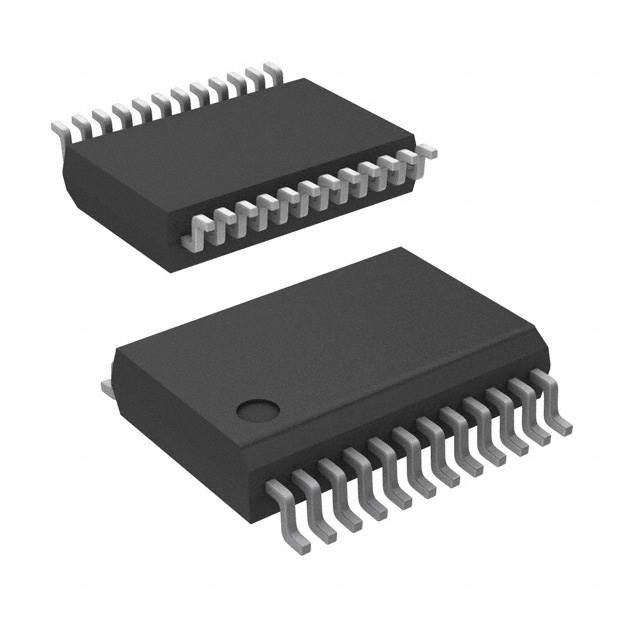

| Package / Case | 24-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 24-SSOP |
| Other | |
| Amplifier Type | Programmable Gain, Differential |
| Base Product Number | CS3301 |
| Mfr | Cirrus Logic Inc. |
| Number of Circuits | 2 |
| Output Type | Differential |
| Product Status | Obsolete |
| Series | - |
