Challenge ElectronicsUnited Kingdom

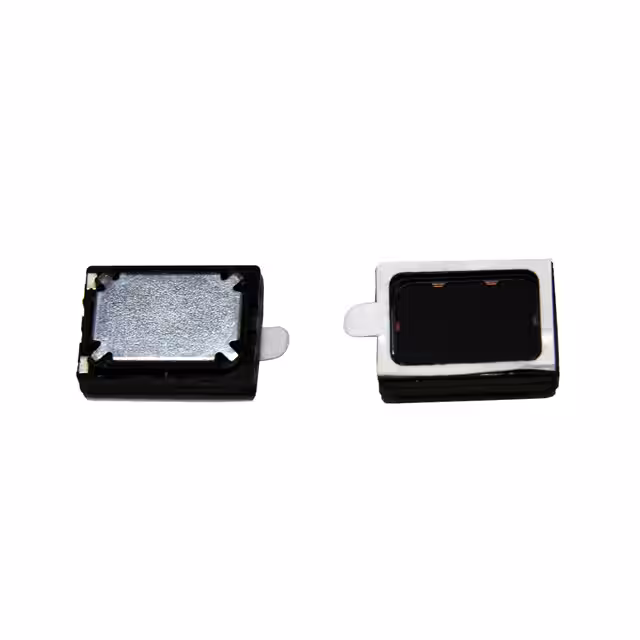

SPEAKER IPX7 8OHM 1W 99DB W/GSKT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Max | 1.2 W |
| Power - Rated | 1 W |
| AC and DC characteristics | |
| Distortion Rating | 10% @ 2kHZ, 1W |
| Frequency Range | 1 kHz ~ 20 kHz |
| Frequency - Self Resonant | 1kHz |
| Impedance | 8 Ohms |
| Environment and package | |
| Height - Seated (Max) | 0.138" (3.50mm) |
| Operating Temperature | -20°C~70°C |
| Package | Tray |
| Size / Dimension | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
| Other | |
| Efficiency - dBA | 99.00 |
| Efficiency - Testing | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Ingress Protection | IPX7 |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Mfr | Challenge Electronics |
| Port Location | Top |
| Product Status | Active |
| Ratings | - |
| Series | - |
| Shape | Rectangular |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
