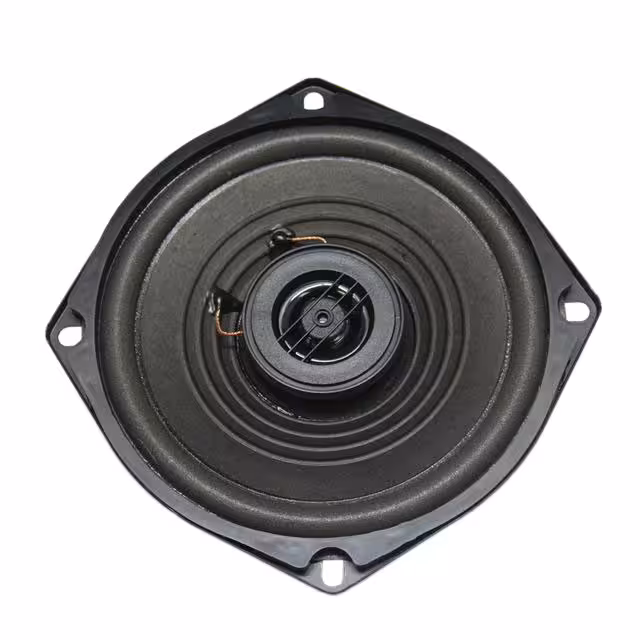

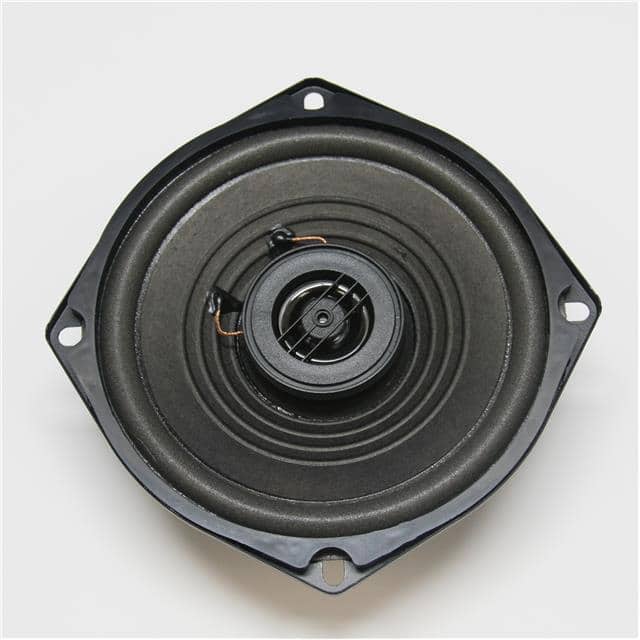

COAX SPEAKER 4OHM 15W 88DB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Max | 30 W |
| Power - Rated | 15 W |
| AC and DC characteristics | |
| Distortion Rating | 5% Max @ 1kHz, 0.125W |
| Frequency Range | 150 Hz ~ 13 kHz |
| Frequency - Self Resonant | 150Hz |
| Impedance | 4 Ohms |
| Environment and package | |
| Height - Seated (Max) | 2.244" (57.00mm) |
| Operating Temperature | -25°C~65°C |
| Package | Tray |
| Size / Dimension | 5.315" L x 5.315" W (135.00mm x 135.00mm) |
| Other | |
| Efficiency - dBA | 88.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Ingress Protection | - |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Mfr | Challenge Electronics |
| Port Location | Top |
| Product Status | Active |
| Ratings | - |
| Series | - |
| Shape | Round, Square Frame |
| Technology | Magnetic |
| Termination | Solder Tabs |
| Type | General Purpose |
