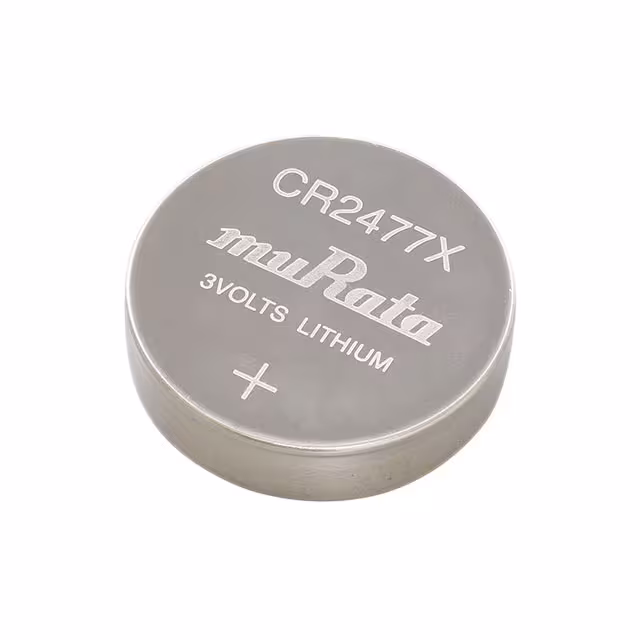

CR2477X
Murata ElectronicsJapan

CR2477X

ActiveBatteries Non-Rechargeable (Primary)

BATTERY LITHIUM 3V COIN 24.5MM

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Voltage - Rated3 V
Environment and package
Battery Cell SizeCoin, 24.5mm
PackageBulk
Size / Dimension0.96" Dia x 0.30" H (24.5mm x 7.7mm)
Storage/Refrigeration Temperature50°F~77°F(10°C~25°C)
Other
Base Product NumberCR
Battery ChemistryLithium Manganese Dioxide
Capacity1Ah
Discharge Rate1mA
MfrMurata Electronics
Product StatusActive
SeriesCR2477
Shelf Life-
Shelf Life Start-
Shipping InfoDue to restrictions, only ground shipment is allowed.
Termination StyleRequires Holder
