CONREVSMA003.031-L
Linx Technologies Inc.United States

CONREVSMA003.031-L

ActiveCoaxial Connector (RF) Assemblies

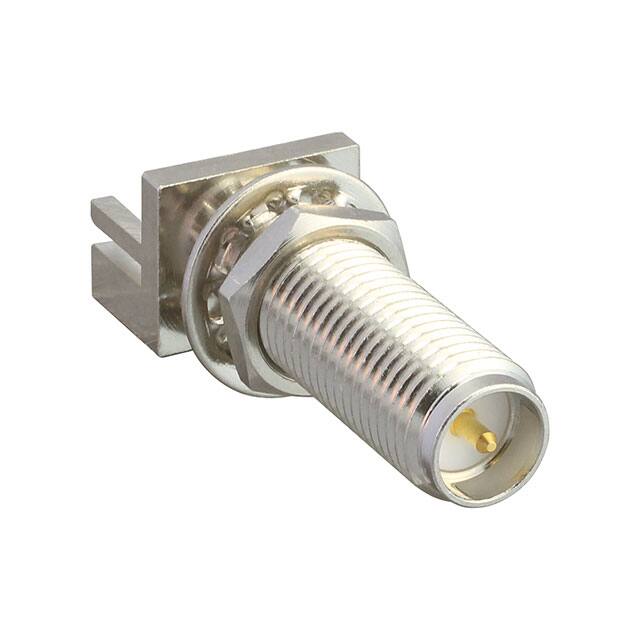

CONN RPSMA RCPT STR 50OHM EDGEMT

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Connector styleRP-SMA
GenderMale
Impedance50 Ω
Max frequency12.4 GHzMax
AC and DC characteristics
Frequency - Max12.4 GHz
Impedance50Ohm
Environment and package
Mounting FeatureBulkhead - Front Side Nut
Mounting TypeBoard Edge, End Launch; Panel Mount
Operating Temperature-65°C~165°C
PackageBulk
Other
Base Product NumberCONREVSM
Body FinishNickel
Body MaterialBrass
Cable Group-
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector StyleRP-SMA
Connector TypeReceptacle, Male Pin
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeThreaded
Features-
Housing ColorSilver
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Ingress Protection-
Insertion Loss-
Mating Cycles500
MfrLinx Technologies Inc.
Number of Ports1
Product StatusActive
Series-
Shield TerminationSolder
