Triad MagneticsUnited States

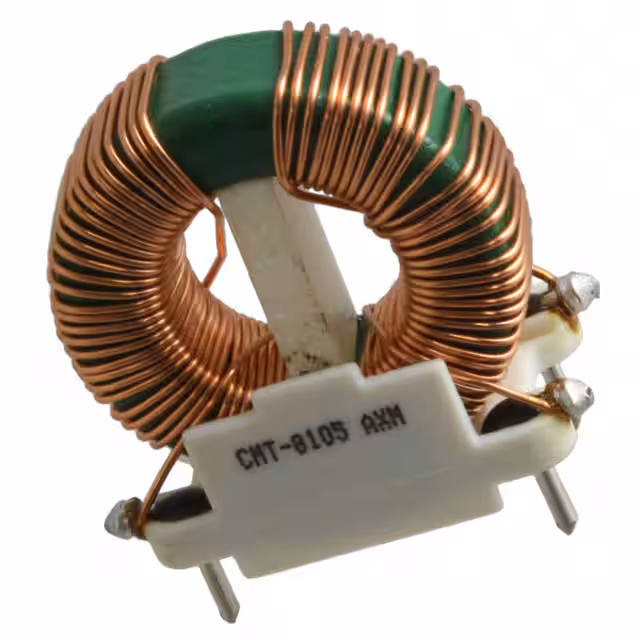

CMC 7MH 2.8A 2LN TH ESD
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating2.8 AMax
DC resistance120 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 2.8A |
| Voltage Rating - AC | 1500V (1.5kV) |
| Voltage Rating - DC | - |
| AC and DC characteristics | |
| Inductance @ Frequency | 7 mH @ 1 kHz |
| Environment and package | |
| Height (Max) | 1.200" (30.48mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Package / Case | Vertical, 4 PC Pin |
| Size / Dimension | 1.200" L x 0.600" W (30.48mm x 15.24mm) |
| Other | |
| Approval Agency | CSA, IEC, UL, VDE |
| DC Resistance (DCR) (Max) | 120mOhm |
| Features | ESD |
| Filter Type | Power Line |
| Mfr | Triad Magnetics |
| Number of Lines | 2 |
| Product Status | Active |
| Ratings | - |
| Series | CMT |
