Triad MagneticsUnited States

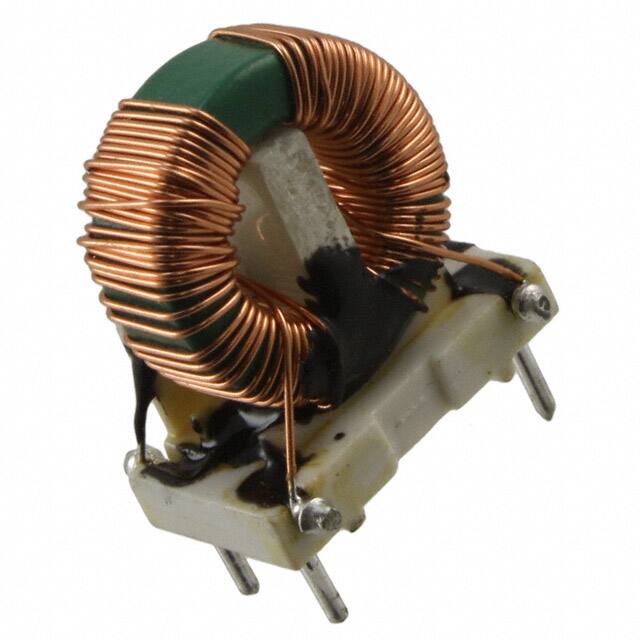

CMC 4MH 1.7A 2LN TH ESD
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating1.7 AMax
DC resistance173 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 1.7A |
| Voltage Rating - AC | 1500V (1.5kV) |
| Voltage Rating - DC | - |
| AC and DC characteristics | |
| Inductance @ Frequency | 4 mH @ 1 kHz |
| Environment and package | |
| Height (Max) | 0.900" (22.86mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Package / Case | Vertical, 4 PC Pin |
| Size / Dimension | 0.760" L x 0.615" W (19.30mm x 15.62mm) |
| Other | |
| Approval Agency | CSA, IEC, UL, VDE |
| DC Resistance (DCR) (Max) | 173mOhm |
| Features | ESD |
| Filter Type | Power Line |
| Mfr | Triad Magnetics |
| Number of Lines | 2 |
| Product Status | Active |
| Ratings | - |
| Series | CMT |
