CUI DevicesUnited States

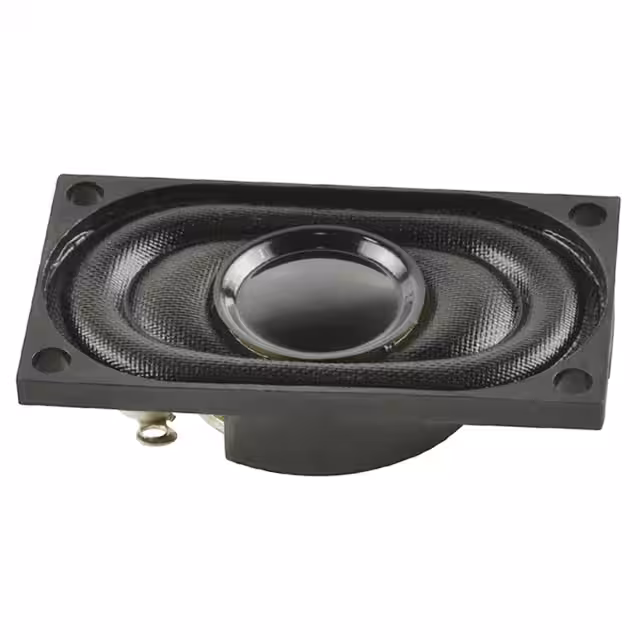

SPEAKER 8OHM 1W TOP PORT 98DB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Max | 1.5 W |
| Power - Rated | 1 W |
| AC and DC characteristics | |
| Frequency Range | 576 Hz ~ 2.5 kHz |
| Frequency - Self Resonant | 720Hz |
| Impedance | 8 Ohms |
| Environment and package | |
| Height - Seated (Max) | 0.319" (8.10mm) |
| Package | Tray |
| Size / Dimension | 1.398" L x 0.807" W (35.50mm x 20.50mm) |
| Other | |
| Efficiency - dBA | 98.00 |
| Efficiency - Testing | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Ingress Protection | - |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Mfr | CUI Devices |
| Port Location | Top |
| Product Status | Obsolete |
| Ratings | - |
| Series | CMS |
| Shape | Oval, Rectangular Frame |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
