CMS-15116-30-SP
CUI DevicesUnited States

CMS-15116-30-SP

ObsoleteSpeakers

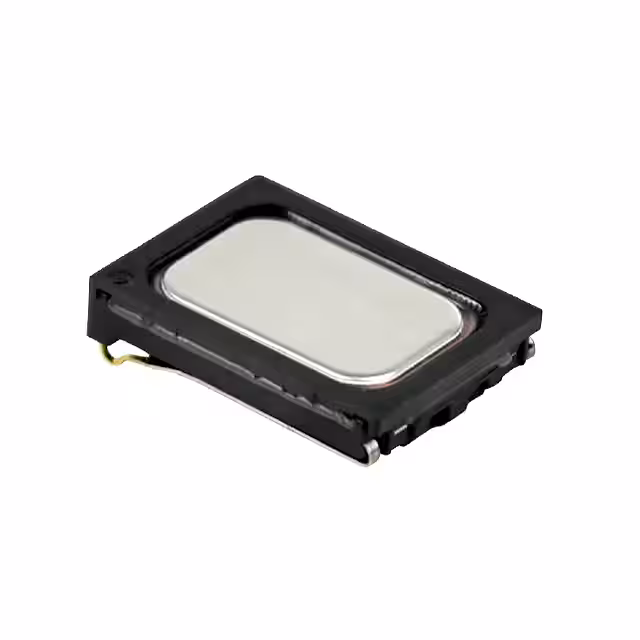

SPEAKER 6OHM 940MW TOP PORT 94DB

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Power - Max1.3 W
Power - Rated940 mW
AC and DC characteristics
Frequency Range400 Hz ~ 20 kHz
Frequency - Self Resonant500Hz
Impedance6 Ohms
Environment and package
Height - Seated (Max)0.130" (3.30mm)
PackageTray
Size / Dimension0.591" L x 0.433" W (15.00mm x 11.00mm)
Other
Efficiency - dBA94.00
Efficiency - Testing940mW/100mm
Efficiency - TypeSound Pressure Level (SPL)
Ingress Protection-
Material - ConePolyester, Polyethylene Terephthalate (PET)
Material - MagnetNd-Fe-B
MfrCUI Devices
Port LocationTop
Product StatusObsolete
Ratings-
SeriesCMS
ShapeRectangular
TechnologyMagnetic
TerminationSolder Pads
TypeGeneral Purpose

Documents

No documents are linked to this part yet.
