Talema Group LLCUnited States

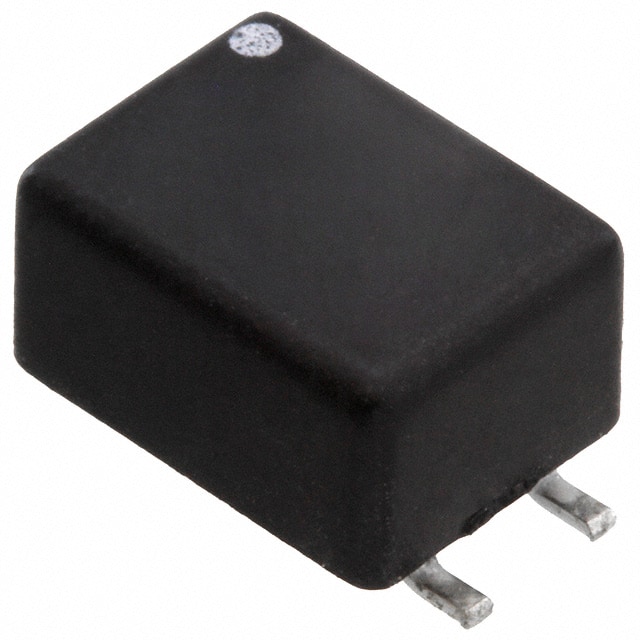

CMC 4.7MH 200MA 2LN SMD
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating200 mAMax
DC resistance840 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 200mA |
| Voltage Rating - AC | - |
| Voltage Rating - DC | - |
| AC and DC characteristics | |
| Inductance @ Frequency | 4.7 mH @ 100 kHz |
| Environment and package | |
| Height (Max) | 0.179" (4.55mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C~70°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | Horizontal, 4 Flat Lead |
| Size / Dimension | 0.299" L x 0.228" W (7.60mm x 5.80mm) |
| Other | |
| Approval Agency | - |
| DC Resistance (DCR) (Max) | 840mOhm |
| Features | - |
| Filter Type | Signal Line |
| Mfr | Talema Group LLC |
| Number of Lines | 2 |
| Product Status | Active |
| Ratings | - |
| Series | CMJ |
