Triad MagneticsUnited States

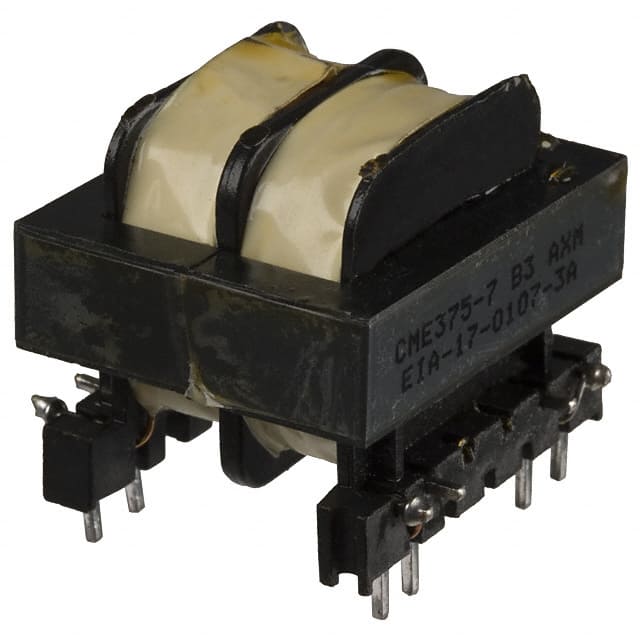

CMC 70.3MH 1.38A 2LN TH ESD
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating1.38 AMax
DC resistance785 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 1.38A |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| AC and DC characteristics | |
| Inductance @ Frequency | 70.3 mH @ 10 kHz |
| Environment and package | |
| Height (Max) | 1.180" (29.97mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~80°C |
| Package | Bulk |
| Package / Case | Vertical, 4 PC Pin |

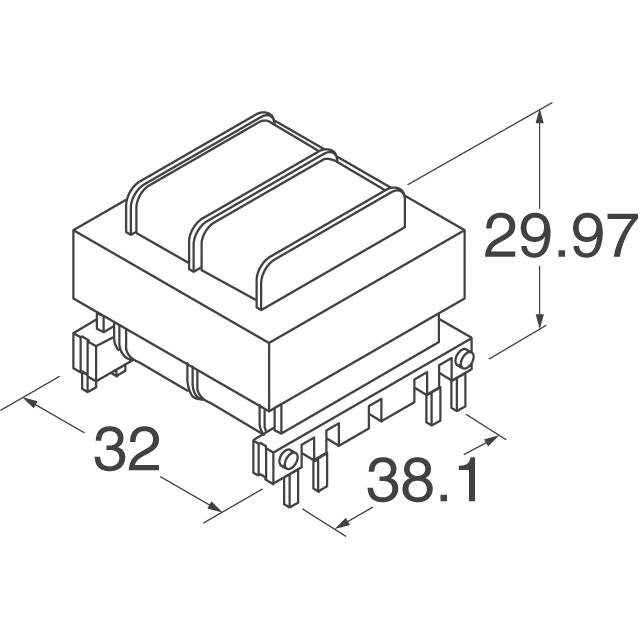

| Size / Dimension | 1.500" L x 1.260" W (38.10mm x 32.00mm) |
| Other | |
| Approval Agency | CSA, IEC, UL, VDE |
| DC Resistance (DCR) (Max) | 785mOhm |
| Features | ESD |
| Filter Type | Power Line |
| Mfr | Triad Magnetics |
| Number of Lines | 2 |
| Product Status | Active |
| Ratings | - |
| Series | CME |
