API Delevan Inc.United States

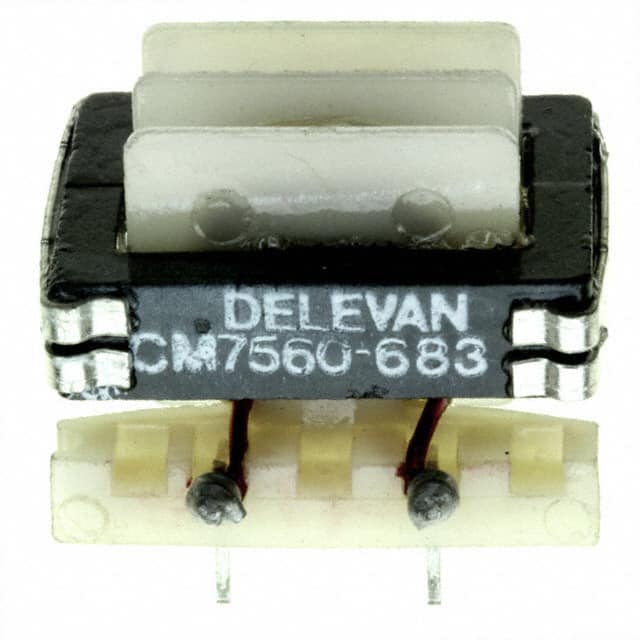

CMC 680UH 3.5A 2LN TH
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating3.5 AMax
DC resistance40 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 3.5A |
| Voltage Rating - AC | - |
| Voltage Rating - DC | - |
| AC and DC characteristics | |
| Inductance @ Frequency | 680 µH @ 1 kHz |
| Environment and package | |
| Height (Max) | 0.861" (21.86mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~125°C |
| Package | Bulk |
| Package / Case | Vertical, 4 PC Pin |
| Size / Dimension | 1.071" L x 0.858" W (27.20mm x 21.80mm) |
| Other | |
| Approval Agency | - |
| DC Resistance (DCR) (Max) | 40mOhm |
| Features | - |
| Filter Type | - |
| Mfr | API Delevan Inc. |
| Number of Lines | 2 |
| Product Status | Active |
| Ratings | - |
| Series | CM7560 |
