API Delevan Inc.United States

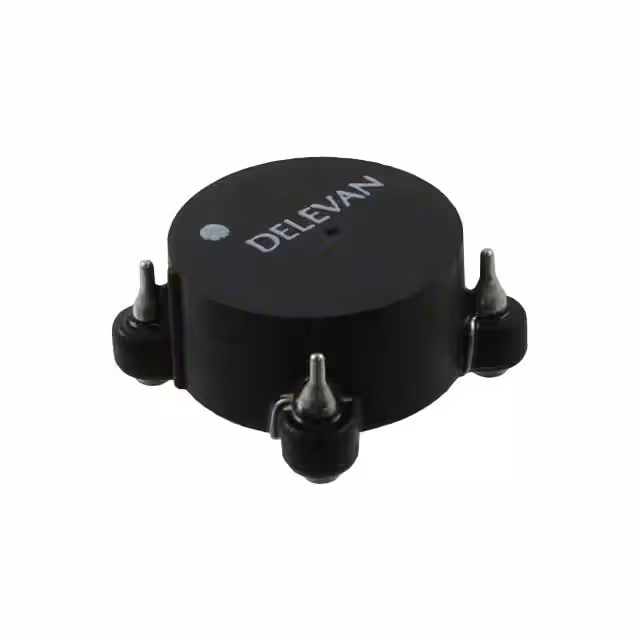

CMC 3.3MH 850MA 2LN SMD
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating850 mAMax
DC resistance210 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 850mA |
| Voltage Rating - AC | - |
| Voltage Rating - DC | - |
| AC and DC characteristics | |
| Inductance @ Frequency | 3.3 mH @ 10 kHz |
| Environment and package | |
| Height (Max) | 0.300" (7.62mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~105°C |
| Package | Tape & Reel (TR) |
| Package / Case | Horizontal, 4 PC Pad |

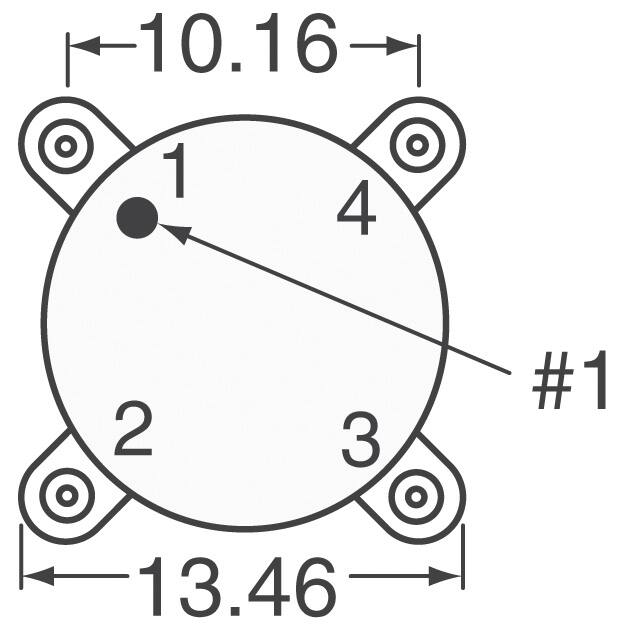

| Size / Dimension | 0.530" L x 0.530" W (13.46mm x 13.46mm) |
| Other | |
| Approval Agency | - |
| DC Resistance (DCR) (Max) | 210mOhm |
| Features | - |
| Filter Type | - |
| Mfr | API Delevan Inc. |
| Number of Lines | 2 |
| Product Status | Active |
| Ratings | - |
| Series | CM6460R |
