Diwell ElectronicsUnited States

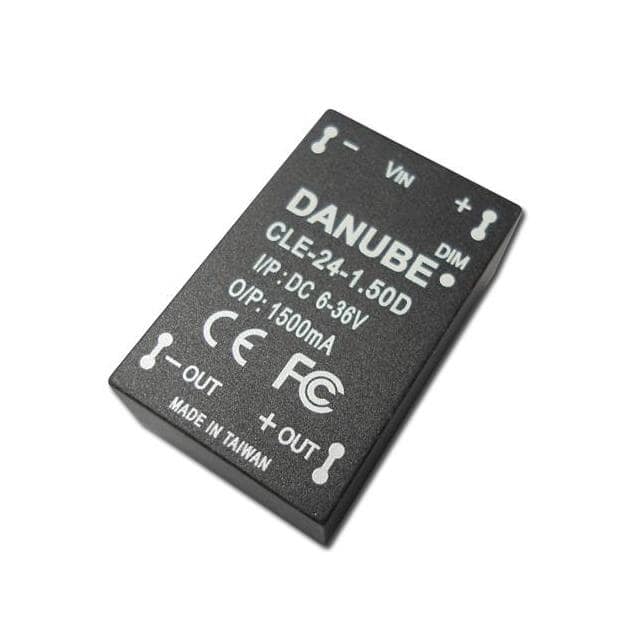

LED DRIVER 1.5A
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | 1.5A |
| Power (Watts) | 45 W |
| Voltage - Input (Max) | 36V |
| Voltage - Input (Min) | 6V |
| Voltage - Output | 2 ~ 30V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~71°C |
| Package | Tube |
| Package / Case | 24-DIP Module, 9 Leads |
| Size / Dimension | 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm) |
| Other | |
| Approval Agency | CE, FCC |
| Dimming | PWM |
| Efficiency | 96% |
| Features | OCP, Remote On/Off, SCP |
| Mfr | Diwell Electronics |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | * |
| Standard Number | - |
| Topology | Buck (Step-Down) |
| Type | Constant Current |
| Weight | - |
