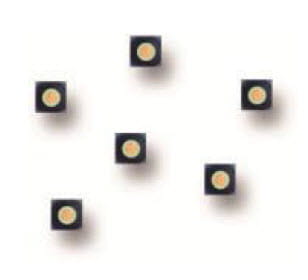

Skyworks Solutions Inc.United States
DIODE LIMITER SILICON 15-30V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 200 mA |
| Power Dissipation (Max) | 490 mW |
| Voltage - Peak Reverse (Max) | 30V |
| Environment and package | |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Package | Tray |
| Package / Case | Die |
| Supplier Device Package | Die |
| Other | |
| Base Product Number | CLA4601 |
| Capacitance @ Vr, F | - |
| Diode Type | PIN - Single |
| Mfr | Skyworks Solutions Inc. |
| Product Status | Active |
| Resistance @ If, F | 2.5Ohm @ 10mA, 1MHz |
| Series | CLA |
