Samsung Electro-MechanicsSouth Korea

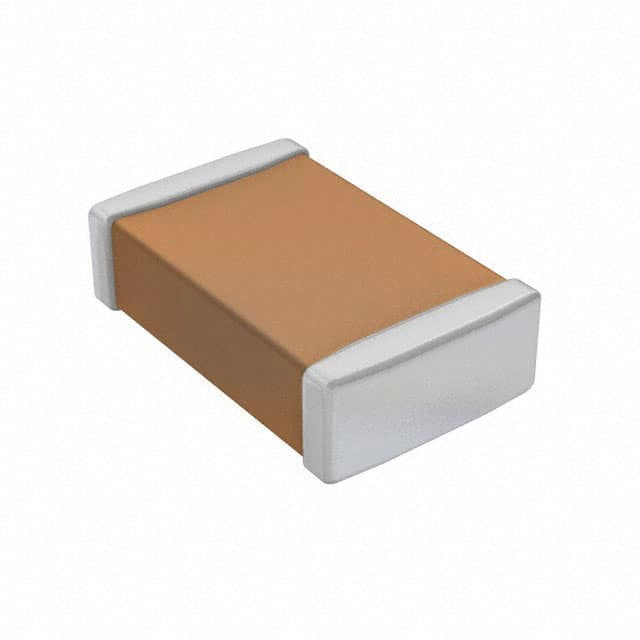

CAP CER 1000PF 50V X7R 1206
All alternatives
View full reportTechnical parameters
Key specs
Capacitance1 nF
Rated voltage50 V
Tolerance10 %
DielectricX7R
| Power | |
|---|---|
| Voltage - Rated | 50V |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature | -55°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Temperature Coefficient | X7R |
| Other | |
| Applications | General Purpose |
| Capacitance | 1000 pF |
| Failure Rate | - |
| Features | - |
| Lead Spacing | - |
| Lead Style | - |
| Mfr | Samsung Electro-Mechanics |
| Product Status | Active |
| Ratings | - |
| Series | CL |
| Thickness (Max) | 0.037" (0.95mm) |
| Tolerance | ±10% |
Documents
No documents are linked to this part yet.
