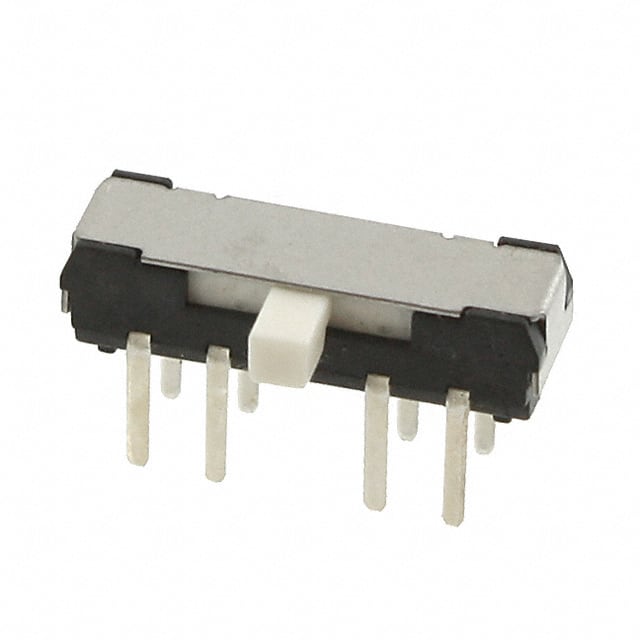

CL-SB-23C-11
Nidec Copal ElectronicsJapan

CL-SB-23C-11

ActiveSlide Switches

SWITCH SLIDE DP3T 200MA 12V

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Switch functionOn-On
Current rating200 mAMax
Voltage rating12 VMax
Power
Current Rating (Amps)200mA (DC)
Voltage Rating - DC12 V
Environment and package
Mounting TypeThrough Hole, Right Angle
Operating Temperature-40°C~85°C
PackageBulk
Other
Actuator Length2.00mm
Actuator MaterialPolyamide (PA), Nylon
Actuator TypeStandard
Base Product NumberCL-SB-23
CircuitDP3T
Contact FinishSilver
Contact MaterialCopper
Contact TimingNon-Shorting (BBM)
Electrical Life10,000 Cycles
Features-
Mechanical Life-
MfrNidec Copal Electronics
Operating Force160/260gf
Product StatusActive
SeriesCL-SB
Switch FunctionOn-On-On
Switch Travel2.00mm
Termination StylePC Pin
