NKK SwitchesJapan

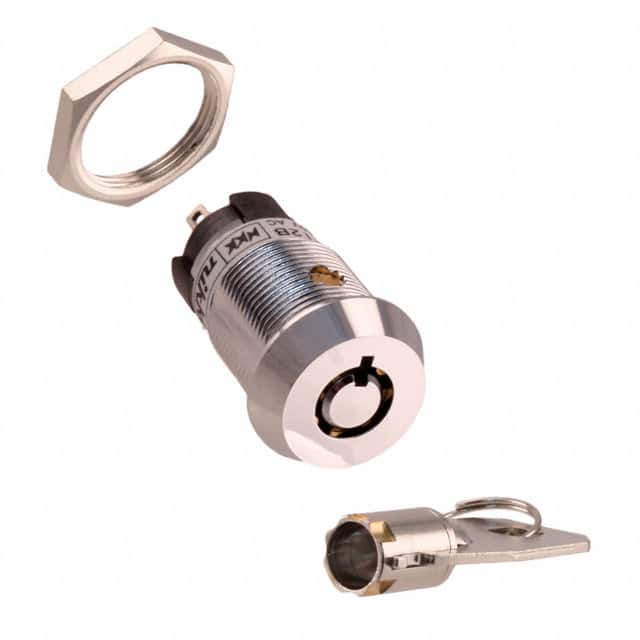

SWITCH KEYLOCK 2POS SPDT 3A 250V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 3A (AC) |
| Voltage Rating - AC | 250 V |
| Environment and package | |
| Mounting Type | Panel Mount |
| Operating Temperature | -25°C~70°C |
| Package | Box |
| Panel Cutout Dimensions | Circular - 19.00mm Dia |
| Other | |
| Actuator Type | Tubular Key |
| Angle of Throw | 90° |
| Base Product Number | CKL12BTW |
| Circuit | SPDT |
| Contact Finish | Silver |
| Contact Material | Silver (Ag) |
| Contact Timing | Non-Shorting (BBM) |
| Depth Behind Flange | 34.60mm |
| Electrical Life | 10,000 Cycles |
| Features | Epoxy Sealed Terminals |
| Key Removable Positions | 1 only |
| Mechanical Life | 30,000 Cycles |
| Mfr | NKK Switches |
| Number of Positions | 2 |
| Product Status | Active |
| Series | CK |
| Switch Function | On-On |
| Termination Style | Solder Lug |
