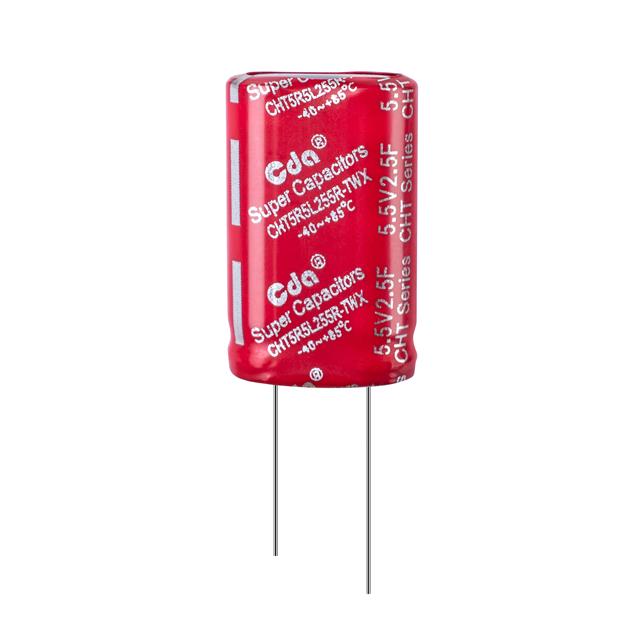

5.5V 2.5F 16*8*27 EDLC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Rated | 5.5 V |
| Environment and package | |
| Height - Seated (Max) | 1.122" (28.50mm) |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Package | Box |
| Package / Case | Radial, Can |
| Size / Dimension | 0.630" L x 0.315" W (16.00mm x 8.00mm) |
| Other | |
| Capacitance | 2.5 F |
| ESR (Equivalent Series Resistance) | 180mOhm @ 1kHz |
| Lead Spacing | 0.453" (11.50mm) |
| Mfr | Zhi Feng Wei Technology |
| Product Status | Active |
| Series | CHT |
| Termination | PC Pins |
| Tolerance | - |
