Cornell Dubilier Electronics (CDE)United States

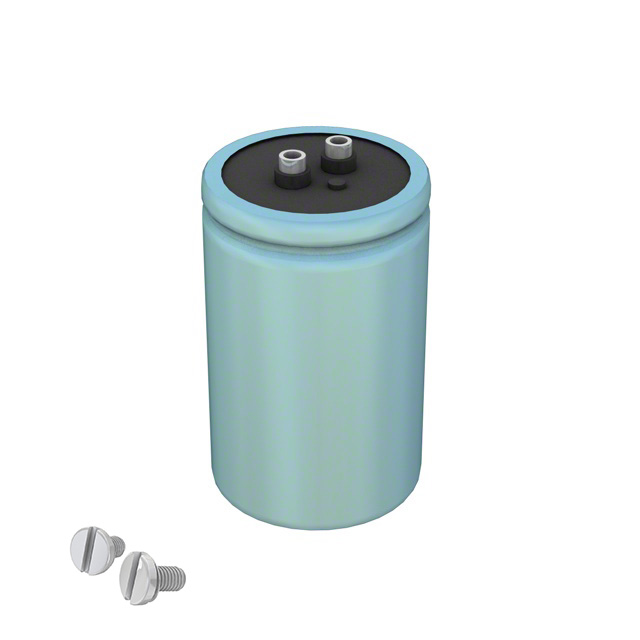

CG601T250V3C
Aluminum Electrolytic CapacitorsCAP ALUM 600UF 250V SCREW CHAS M
All alternatives
View full reportTechnical parameters
Key specs
Capacitance600 µF
Rated voltage250 V
Tolerance50 %
ESR91 mΩMax · 120Hz
Lifetime2 kh85°C
| Power | |
|---|---|
| Voltage - Rated | 250 V |
| AC and DC characteristics | |
| Ripple Current @ High Frequency | 4.961 A @ 10 kHz |
| Ripple Current @ Low Frequency | 4.1 A @ 120 Hz |
| Environment and package | |
| Height - Seated (Max) | 3.125" (79.38mm) |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Surface Mount Land Size | - |
| Other | |
| Applications | General Purpose |
| Capacitance | 600 µF |
| ESR (Equivalent Series Resistance) | 91mOhm @ 120Hz |
| Lead Spacing | - |
| Mfr | Cornell Dubilier Knowles |
| Packaging | Bulk |
| Part Status | Active |
| Polarization | Polar |
| Ratings | - |
| Series | CG |
| Tolerance | -10%, +50% |
