CUI DevicesUnited States

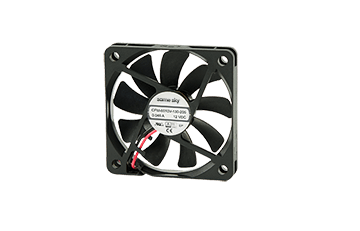

FAN AXIAL 60X10MM 12VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.087A |
| Power (Watts) | 1.05 W |
| Voltage Range | 4.5 ~ 13.8VDC |
| Voltage - Rated | 12VDC |
| AC and DC characteristics | |
| Noise | 25.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Operating Temperature | 14~158°F(-10~70°C) |
| Package | Tray |
| Size / Dimension | Square - 60mm L x 60mm H |
| Other | |
| Air Flow | 14.3 CFM (0.400m³/min) |
| Approval Agency | CE, cURus, TUV |
| Base Product Number | CFM-6010 |
| Bearing Type | omniCOOL™ Magnetic Sleeve |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Locked Rotor Sensor |
| Ingress Protection | - |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Mfr | CUI Devices |
| Product Status | Obsolete |
| RPM | 3500 RPM |
| Series | CFM-60V |
| Static Pressure | 0.100 in H2O (24.9 Pa) |
| Termination | 3 Wire Leads |
| Weight | 0.051 lb (23.13 g) |
| Width | 10.00mm |
