Cornell Dubilier Electronics (CDE)United States

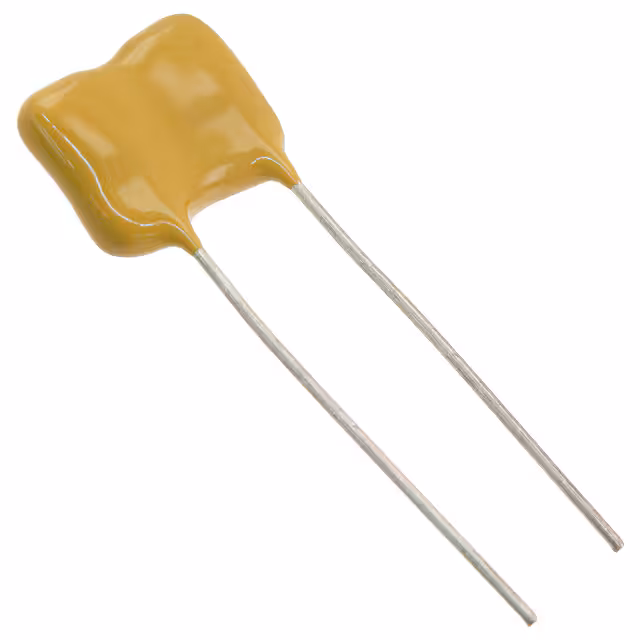

CAP MICA 3900PF 5% 500V RADIAL
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Rated | 500 V |
| Environment and package | |
| Height - Seated (Max) | 0.559" (14.20mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~125°C |
| Package | Bulk |
| Package / Case | Radial |

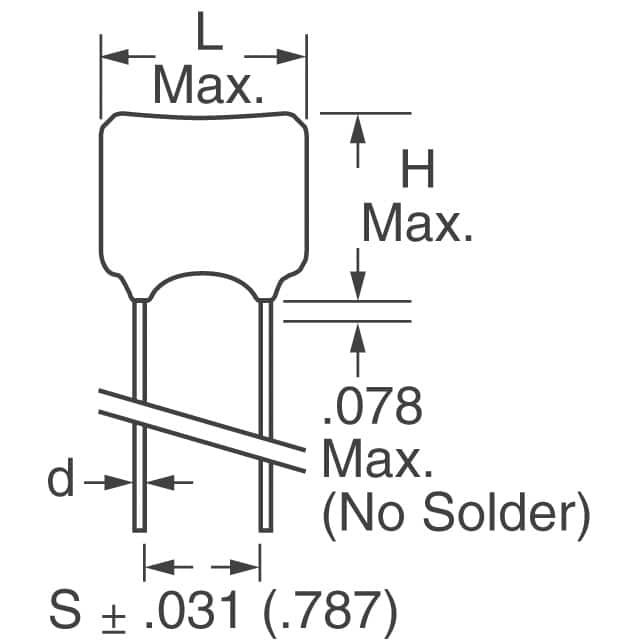

| Size / Dimension | 0.689" L x 0.311" W (17.50mm x 7.90mm) |
| Other | |
| Capacitance | 3900 pF |
| Dielectric Material | Mica |
| Features | General Purpose |
| Lead Spacing | 0.343" (8.70mm) |
| Mfr | Cornell Dubilier Electronics (CDE) |
| Product Status | Active |
| Series | CD19 |
| Tolerance | ±5% |
Documents
No documents are linked to this part yet.
