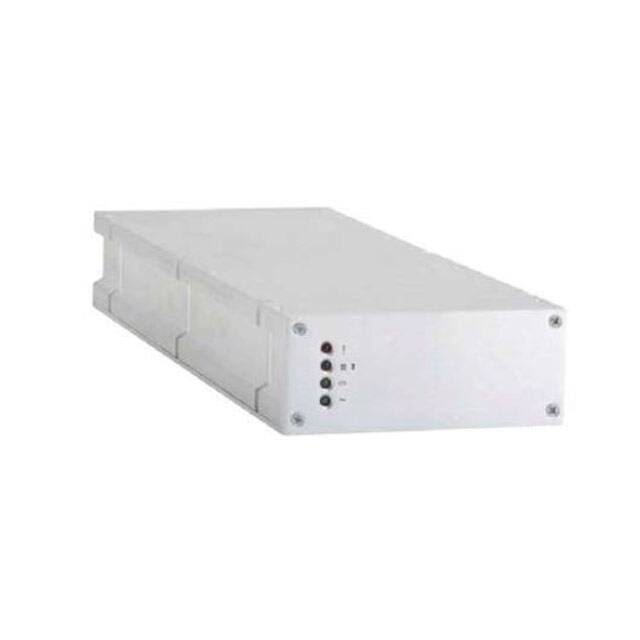

AC/DC CONVERTER 52V 3500W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage90 ~ 140 V
Output voltage52 V
Output current67.3 AMax
Power3.5 kWMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 67.3 A |
| Power (Watts) | 3500W |
| Voltage - Input | 90 ~ 140 VAC, 185 ~ 265 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 52V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C~50°C |
| Package | Box |
| Size / Dimension | 17.11" L x 4.65" W x 1.87" H (434.5mm x 118.0mm x 47.5mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE, CSA, UR |
| Efficiency | 91% |
| Features | Adjustable Output, Hot Swappable, I²C™ Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Standby Output |
| Mfr | ABB Power Electronics Inc. |
| Minimum Load Required | - |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | CC3500 (3500W) |
| Type | Front End |
