Texas InstrumentsUnited States
IC RF TXRX+MCU 802.15.4 48VQFN
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Receiving | 5.9mA ~ 6.1mA |
| Current - Transmitting | 6.1mA ~ 9.1mA |
| Power - Output | 5dBm |
| Voltage - Supply | 1.8V ~ 3.8V |
| AC and DC characteristics | |
| Frequency | 2.4GHz |
| Environment and package | |
| Memory Size | 128kB Flash, 28kB SRAM |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

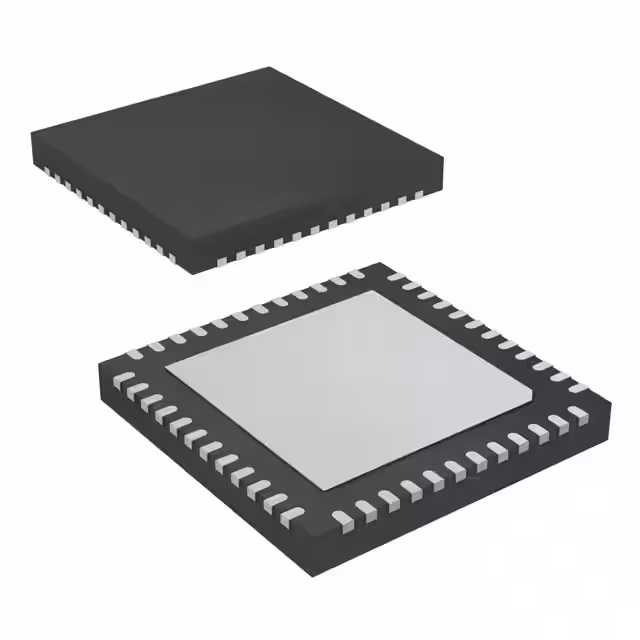

| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (7x7) |
| Other | |
| Base Product Number | CC2650 |
| Data Rate (Max) | 1Mbps |
| GPIO | 31 |
| Mfr | Texas Instruments |
| Modulation | DSSS, O-QPSK, GFSK |
| Product Status | Active |
| Protocol | 6LoWPAN, Bluetooth v5.1, Zigbee® |
| RF Family/Standard | 802.15.4, Bluetooth |
| Sensitivity | -100dBm |
| Serial Interfaces | I²C, I²S, JTAG, SPI, UART |
| Series | SimpleLink™ |
| Type | TxRx + MCU |
