Ease ElectronicsTaiwan, China

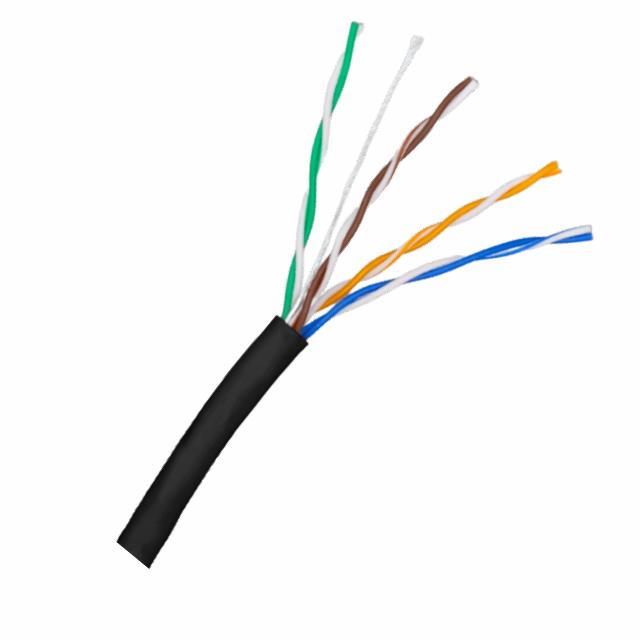

CAT5-3041R-UTP-B
Multiple Conductor CablesCBL CAT5E 8CON 24AWG CMR 1000'
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 300 V |
| Environment and package | |
| Operating Temperature | -20°C ~ 75°C |
| Other | |
| Cable Type | Multi-Pair, Cat5e |
| Conductor Insulation | Polyethylene (PE) |
| Conductor Material | Copper |
| Conductor Strand | Solid |
| Features | Flame Retardant |
| Jacket Color | Black |
| Jacket (Insulation) Diameter | 0.181" (4.60mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Riser |
| Jacket (Insulation) Thickness | 0.0197" (0.500mm) |
| Length | 1000.0' (304.8m) |
| Mfr | Ease Electronics |
| Number of Conductors | 8 (4 Pair Twisted) |
| Packaging | Spool |
| Part Status | Active |
| Ratings | UL Style, Riser |
| Series | CAT5-B |
| Shield Coverage | - |
| Shield Material | - |
| Shield Type | - |
| Usage | Network |
| Wire Gauge | 24 AWG |
