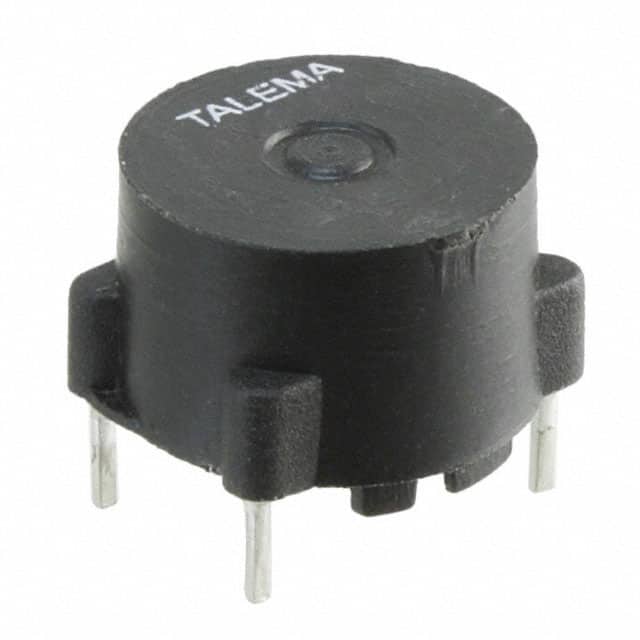

CAF-3.1-1.2
Talema Group LLCUnited States

CAF-3.1-1.2

ActiveCommon Mode Chokes

CMC 1.2MH 3.1A 2LN TH

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Number of lines2
Current rating3.1 AMax
DC resistance44 mΩMax
Power
Current Rating (Max)3.1A
Voltage Rating - AC250V
Voltage Rating - DC-
AC and DC characteristics
Inductance @ Frequency1.2 mH @ 10 kHz
Environment and package
Height (Max)0.591" (15.00mm)
Mounting TypeThrough Hole
Operating Temperature-40°C~125°C
PackageTray
Package / CaseHorizontal, 4 PC Pin
Size / Dimension0.886" L x 0.866" W (22.50mm x 22.00mm)
Other
Approval Agency-
DC Resistance (DCR) (Max)44mOhm
Features-
Filter TypeSignal Line
MfrTalema Group LLC
Number of Lines2
Product StatusActive
Ratings-
SeriesCA
