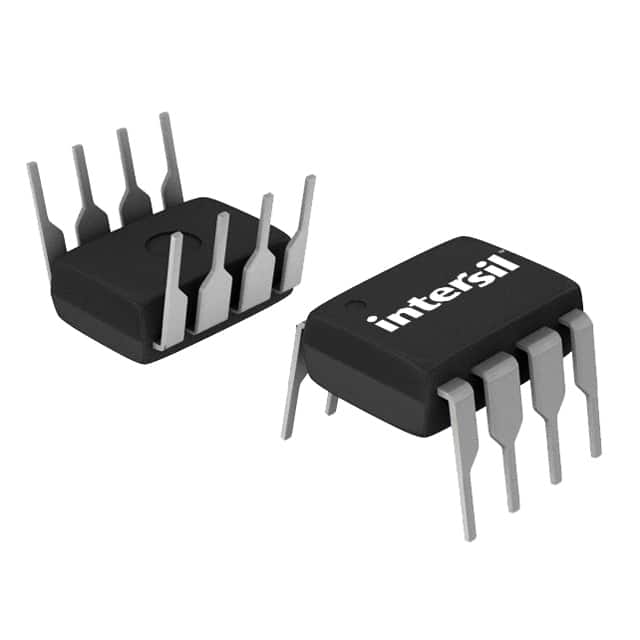

IC OPAMP GP 1 CIRCUIT 8DIP
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage2 ~ 20 V
Gain bandwidth product500 kHzTyp
Input offset voltage5 mVTyp
Quiescent current450 µATyp
Channels1
| Power | |
|---|---|
| Current - Input Bias | 0.05 pA |
| Current - Output / Channel | 2.6 mA |
| Current - Supply | 450µA |
| Voltage - Supply Span (Max) | 20 V |
| Voltage - Supply Span (Min) | 2 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 500 kHz |
| Slew Rate | 0.5V/µs |
| Voltage - Input Offset | 5 mV |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~125°C |
| Package | Tube |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Other | |
| Amplifier Type | General Purpose |
| Base Product Number | CA3420 |
| Mfr | Renesas Electronics America Inc |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Product Status | Obsolete |
| Series | - |
