Harris CorporationUnited States
REGULATING PULSE WIDTH MODULATOR
All alternatives
View full reportTechnical parameters
Key specs
TopologyFlyback
Outputs2
Input voltage8 ~ 40 V
Switching frequency300 kHz
| Power | |
|---|---|
| Voltage - Supply (Vcc/Vdd) | 8V ~ 40V |
| AC and DC characteristics | |
| Frequency - Switching | Up to 300kHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C~70°C |
| Package | Bulk |

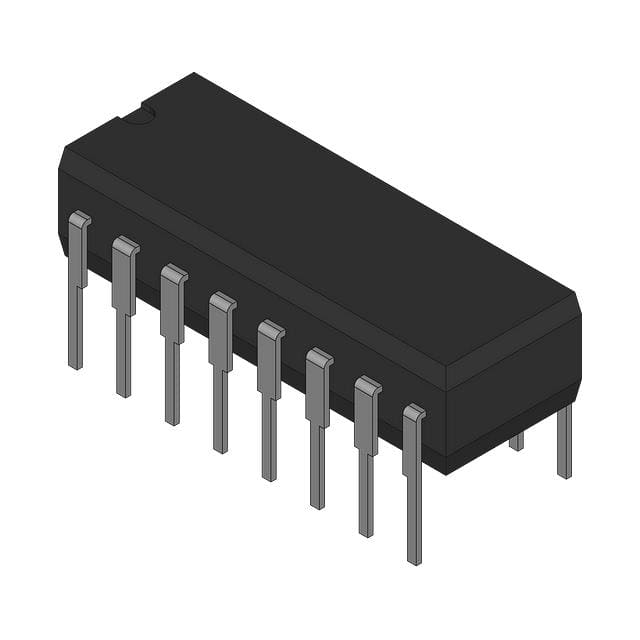

| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP |
| Other | |
| Clock Sync | No |
| Control Features | Current limit, Dead Time Control, Enable, Frequency Control, Ramp |
| Duty Cycle (Max) | 45% |
| Function | Step-Up/Step-Down |
| Mfr | Harris Corporation |
| Number of Outputs | 2 |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Product Status | Active |
| Serial Interfaces | - |
| Series | - |
| Synchronous Rectifier | No |
| Topology | Flyback, Push-Pull |
