Focus LCDsUnited States

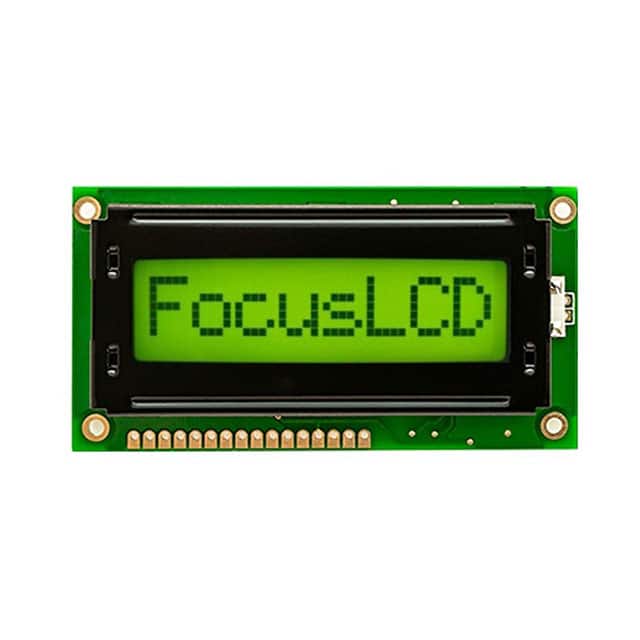

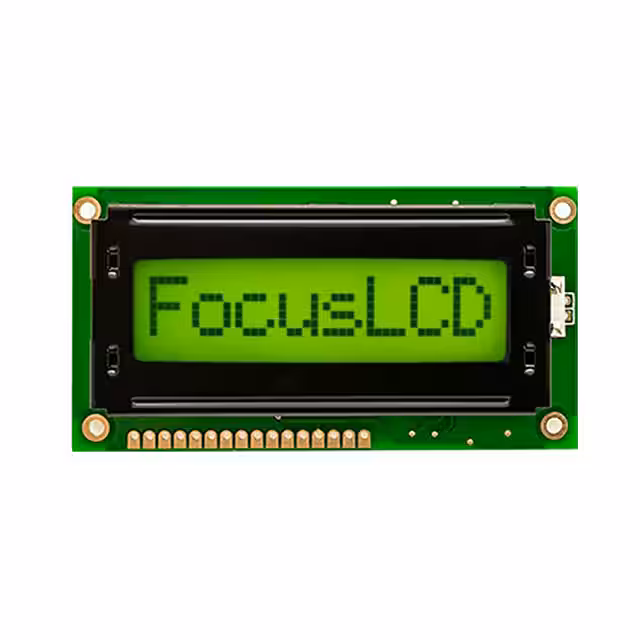

8X1 STN YELLOW/GREEN CHARACTER L
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 5V |
| Environment and package | |
| Character Size | 10.75mm H x 6.45mm W |
| Dot Size | 1.25mm W x 1.30mm H |
| Operating Temperature | -20°C~70°C |
| Package | Box |
| Other | |
| Background Color | Yellow/Green |
| Backlight | LED - Yellow |
| Character Format | 5 x 7 Dots |
| Controller Type | ST7066U |
| Display Format | 8 x 1 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Interface | Parallel |
| Mfr | Focus LCDs |
| Number of Characters | 8 |
| Outline L x W x H | 84.00mm x 44.00mm x 13.50mm |
| Product Status | Not For New Designs |
| Series | C81A |
| Text Color | Black |
| Viewing Area | 61.00mm L x 15.80mm W |
