Sensata TechnologiesUnited States

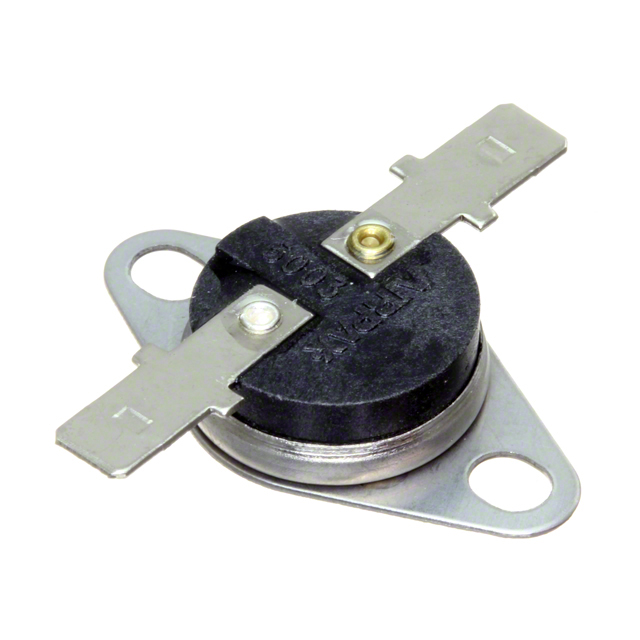

THERMOSTAT 52DEG C SPST-NC CYL
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating - AC | 3A (240V), 5A (120V) |
| Current Rating - DC | 1.5A (48V), 3A (24V) |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Package | Tray |
| Package / Case | Cylinder with Mounting Flange |
| Reset Temperature | 125°F (52°C) |
| Switching Temperature | 125°F (52°C) |
| Other | |
| Base Product Number | C53GAB125 |
| Circuit | SPST-NC |
| Mfr | Sensata Technologies |
| Product Status | Active |
| Series | 5003 |
| Switching Cycles | 100K |
| Termination Style | Quick Connect |
| Tolerance | ±5°F (±2.8°C) |
Documents
No documents are linked to this part yet.
