Wolfspeed, Inc.United States

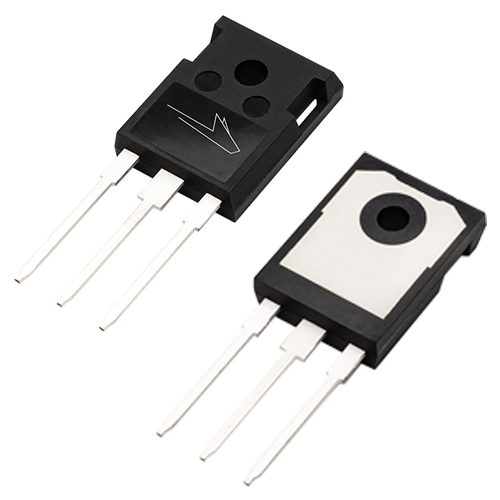

DIODE SCHOTTKY 1.2KV 24.5A TO247
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 24.5V (DC) |
| Current - Reverse Leakage @ Vr | 250 µA @ 1200 V |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 8 A |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -55°C~175°C |
| Package | Tube |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247-3 |
| Other | |
| Base Product Number | C4D15120 |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Silicon Carbide Schottky |
| Mfr | Wolfspeed, Inc. |
| Product Status | Active |
| Series | Z-Rec® |
| Speed | No Recovery Time > 500mA (Io) |
