Coto TechnologyUnited States

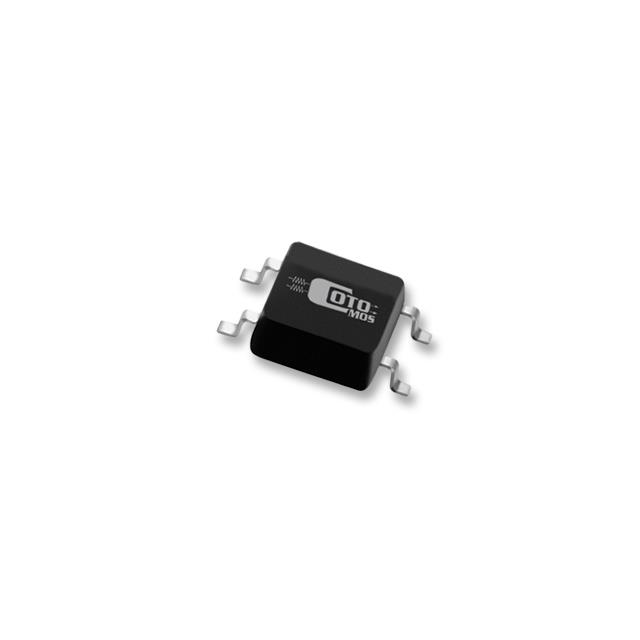

SSR RELAY SPST-NO 120MA 0-350V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Load Current | 120 mA |
| Voltage - Input | 1.37VDC |
| Voltage - Load | 0 V ~ 350 V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOP (0.173", 4.40mm) |
| Supplier Device Package | 4-SOP |
| Other | |
| Circuit | SPST-NO (1 Form A) |
| Mfr | Coto Technology |
| On-State Resistance (Max) | 24 Ohms |
| Output Type | AC, DC |
| Packaging | Tube |
| Part Status | Obsolete |
| Series | COTOMOS™ |
| Termination Style | Gull Wing |
Documents
No documents are linked to this part yet.
