Focus LCDsUnited States

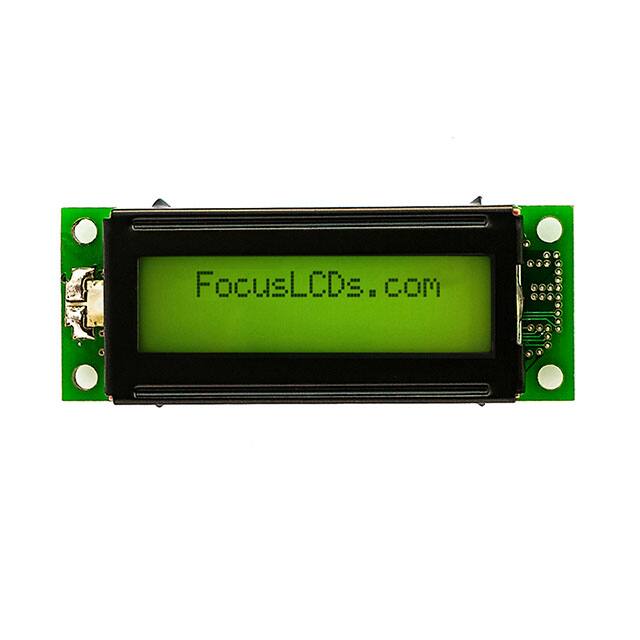

16X2 STN YELLOW/GREEN CHARACTER
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 5V |
| Environment and package | |
| Character Size | 3.23mm H x 1.85mm W |
| Dot Size | 0.33mm W x 0.36mm H |
| Operating Temperature | -20°C~70°C |
| Package | Box |
| Other | |
| Background Color | Yellow/Green |
| Backlight | LED - Yellow |
| Character Format | 5 x 7 Dots |
| Controller Type | SPLC780D |
| Display Format | 16 x 2 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Interface | Parallel |
| Mfr | Focus LCDs |
| Number of Characters | 32 |
| Outline L x W x H | 53.00mm x 20.00mm x 8.50mm |
| Product Status | Not For New Designs |
| Series | C162E |
| Text Color | Black |
| Viewing Area | 36.00mm L x 10.00mm W |
