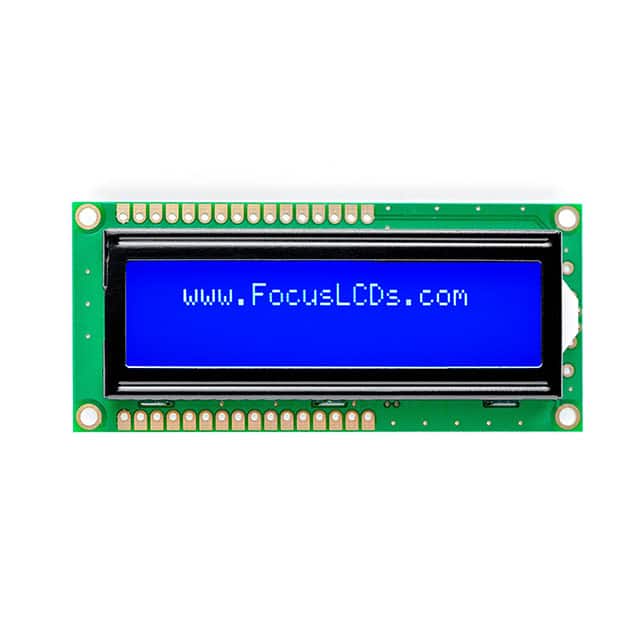

16X2 STN BLUE CHARACTER LCD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 5V |
| Environment and package | |
| Character Size | 5.23mm H x 3.00mm W |
| Dot Size | 0.56mm W x 0.61mm H |
| Operating Temperature | -20°C~70°C |
| Package | Box |
| Other | |
| Background Color | Blue |
| Backlight | LED - White |
| Character Format | 5 x 8 Dots |
| Controller Type | ST7066U |
| Display Format | 16 x 2 |
| Display Mode | Transmissive |
| Display Type | STN - Super-Twisted Nematic |
| Interface | Parallel |
| Mfr | Focus LCDs |
| Number of Characters | 32 |
| Outline L x W x H | 80.00mm x 36.00mm x 11.50mm |
| Product Status | Not For New Designs |
| Series | C162A |
| Text Color | White |
| Viewing Area | 64.50mm L x 16.40mm W |
