Yangjie TechnologyChina

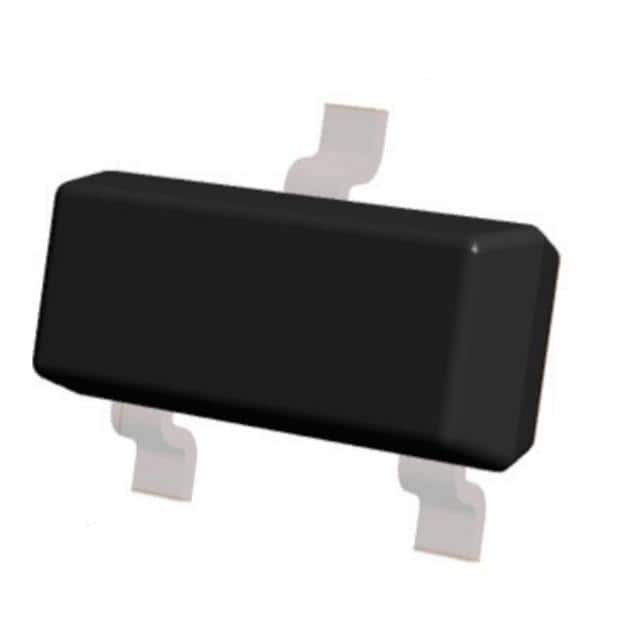

SOT-23 2.7V 0.35W Diodes Zener
All alternatives
View full reportTechnical parameters
Key specs
Zener voltage2.7 V
Tolerance5 %
Power350 mWMax
Zener impedance100 ΩMax
| Power | |
|---|---|
| Current - Reverse Leakage @ Vr | 20 µA @ 1 V |
| Power - Max | 350 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Voltage - Zener (Nom) (Vz) | 2.7 V |
| AC and DC characteristics | |
| Impedance (Max) (Zzt) | 100 Ohms |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| Other | |
| Mfr | Yangjie Technology |
| Product Status | Active |
| Series | - |
| Tolerance | ±5% |
