Rohm SemiconductorJapan

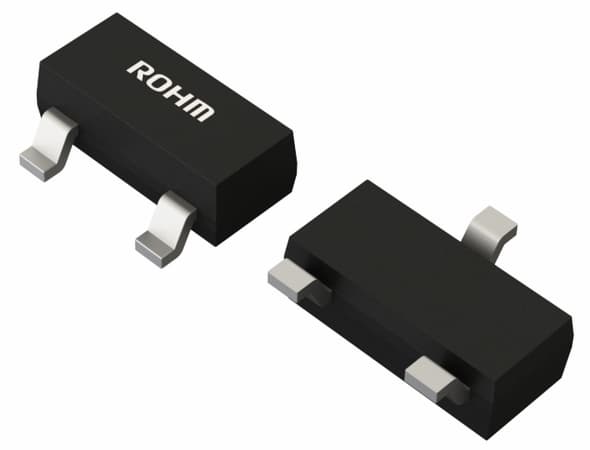

250mW, 15V, SOT-23, Zener Diode (BZX84C series)
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power Dissipation (P D )[mW] | 250 |
| Zener Voltage V Z (Max.)[V] | 15.6 |
| Zener Voltage V Z (Min.)[V] | 13.8 |
| Environment and package | |
| Mounting Style | Surface mount |

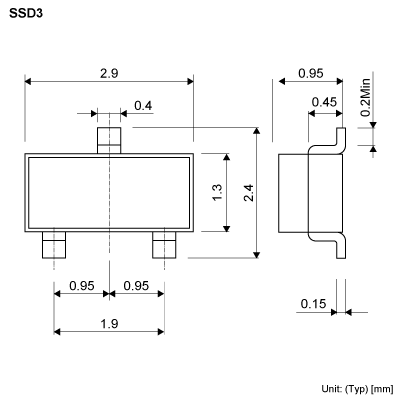

| Package Code | SOT-23 |
| Package Size [mm] | 2.4x2.9 (t=1.15) |
| Storage Temperature (Max.)[°C] | 150 |
| Storage Temperature (Min.)[°C] | -65 |
| Other | |
| Configuration | Single |
| I Z @ V Z [mA] | 5 |
| Number of terminal | 3 |
| Tj[℃] | 150 |
