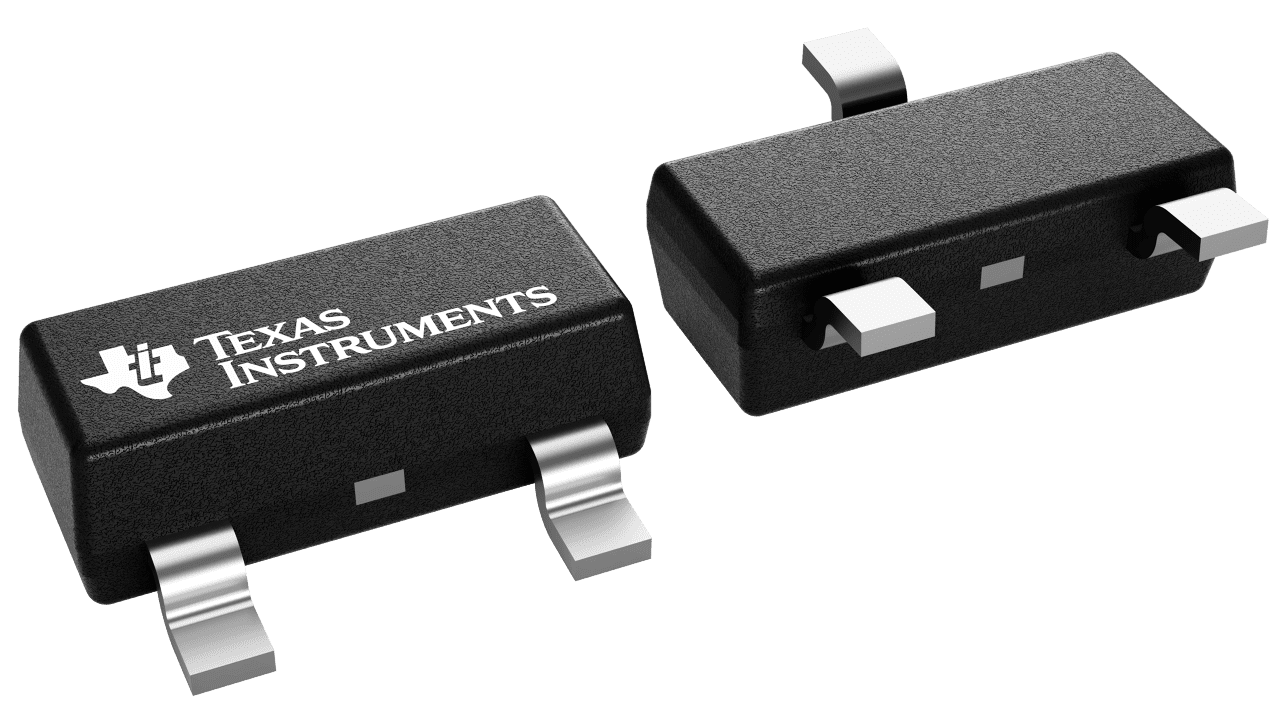

The BZX84Cx is a family of voltage regulating diodes in a SOT-23 package. The diodes are available in Zener voltages ranging from 5.6V to 39V.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| IO leakage current (max) (nA) | 500 |
| Number of channels | 1 |
| Environment and package | |
| Package name | SOT-23-3 |
| Other | |
| IO capacitance (typ) (pF) | 68 |
| Pd (max) (W) | 0.43 |
| Rating | Catalog |
| Tolerance (±) (%) | 5 |
| Vz (nom) (V) | 15 |
