View full reportTechnical parameters
Key specs
Zener voltage20 V
Tolerance6 %
Power150 mWMax
Zener impedance30 ΩMax
| Power | |
|---|---|
| Current - Reverse Leakage @ Vr | 100 nA @ 10.5 V |
| Power - Max | 150 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Voltage - Zener (Nom) (Vz) | 20 V |
| AC and DC characteristics | |
| Impedance (Max) (Zzt) | 30 Ohms |
| Environment and package | |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Bulk |

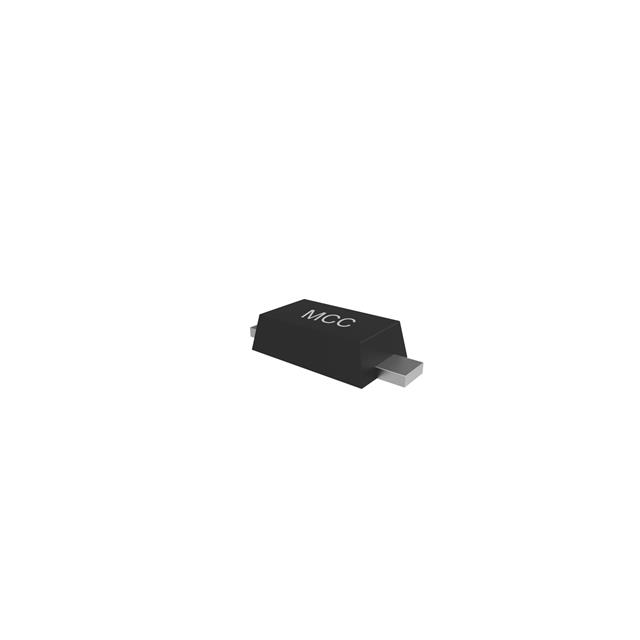

| Package / Case | SC-79, SOD-523 |
| Qualification | AEC-Q101 |
| Supplier Device Package | SOD-523 |
| Other | |
| Base Product Number | BZX584 |
| Mfr | Micro Commercial Co |
| Product Status | Active |
| Series | - |
| Tolerance | ±6% |
